uPVC SWR
Drain & Soil
Engineered with friction-free interior walls for highly efficient high-volume flow drainage. Our high-impact SWR pipes comply strictly with BS EN 1329-1 and BS EN 1401-1 laboratory benchmarks, delivering non-clogging smooth flow mechanics built for a lifetime.
Explore Technical Hub
Engineering & Fittings Hub
Access calibrated BS EN 1329-1 & BS EN 1401-1 dimensional matrices, jointing protocols, and certified drainage fittings.
| Nominal Size(mm) | Outer Dia (OD)Min - Max (mm) | Wall Thickness (B)Internal Soil & Waste | Wall Thickness (BD)Internal & External (Buried) |
|---|---|---|---|
| 32 | 32.0 - 32.2 | 3.0 - 3.5 mm | - |
| 36 | 36.2 - 36.5 | 3.0 - 3.5 mm | - |
| 40 | 40.0 - 40.2 | 3.0 - 3.5 mm | - |
| 43 | 42.9 - 43.1 | 3.0 - 3.5 mm | - |
| 50 | 50.0 - 50.2 | 3.0 - 3.5 mm | - |
| 56 | 56.0 - 56.1 | 3.0 - 3.5 mm | - |
| 75 | 75.0 - 75.3 | 3.0 - 3.5 mm | 3.0 - 3.5 mm |
| 82 | 82.0 - 82.3 | 3.0 - 3.5 mm | 3.0 - 3.5 mm |
| 110 | 110.0 - 110.3 | 3.2 - 3.8 mm | 3.2 - 3.8 mm |
| 160 | 160.0 - 160.4 | 3.2 - 3.8 mm | 4.0 - 4.5 mm |
| 200 | 200.0 - 200.5 | 3.9 - 4.5 mm | 4.9 - 5.6 mm |
| 250 | 250.0 - 250.5 | 4.9 - 5.6 mm | 6.2 - 7.1 mm |
| 315 | 315.0 - 315.6 | 6.2 - 7.1 mm | 7.7 - 8.1 mm |
| Mean Outside Dia(mm) | SN 2 (SDR 51)Min - Max (mm) | SN 4 (SDR 41)Min - Max (mm) | SN 8 (SDR 34)Min - Max (mm) | SN 16 (SDR 27.6)Min - Max (mm) |
|---|---|---|---|---|
| 110 | - | 3.2 - 3.8 mm | 3.2 - 3.8 mm | 4.0 - 4.6 mm |
| 125 | - | 3.2 - 3.8 mm | 3.7 - 4.3 mm | 4.6 - 5.3 mm |
| 160 | 3.2 - 3.8 mm | 4.0 - 4.6 mm | 4.7 - 5.4 mm | 5.8 - 6.6 mm |
| 200 | 3.9 - 4.5 mm | 4.9 - 5.6 mm | 5.9 - 6.7 mm | 7.3 - 8.3 mm |
| 250 | 4.9 - 5.6 mm | 6.2 - 7.1 mm | 7.3 - 8.3 mm | 9.1 - 10.3 mm |
| 315 | 6.2 - 7.1 mm | 7.7 - 8.7 mm | 9.2 - 10.4 mm | 11.4 - 12.8 mm |
| 355 | 7.0 - 7.9 mm | 8.7 - 9.8 mm | 10.4 - 11.7 mm | 12.9 - 14.4 mm |
| 400 | 7.9 - 8.9 mm | 9.8 - 11.0 mm | 11.7 - 13.1 mm | 14.5 - 16.2 mm |
| 450 | 8.8 - 9.9 mm | 11.0 - 12.3 mm | 13.2 - 14.8 mm | 16.3 - 18.2 mm |
| 500 | 9.8 - 11.0 mm | 12.3 - 13.8 mm | 14.6 - 16.3 mm | 18.1 - 20.2 mm |
| 630 | 12.3 - 13.8 mm | 15.4 - 17.4 mm | 18.4 - 20.7 mm | 22.8 - 25.3 mm |
-
1
Alignment & Bedding
Ensure the trench excavation line is completely clear from sharp rocks or jagged soil surfaces. Lay the SWR pipe baseline onto a smooth, leveled soft sand bed to prevent physical stress focus.
-
2
Apply Cement Matrix
Spread a uniform, continuous film layer of BPI Industrial Solvent Cement to the external shaved pipe end layer and along the interior entry mouth of the drainage fitting socket.
-
3
Insert & Twist Action
Force the pipe squarely inside the receiving drainage fitting mouth until bottomed out, administering a slight quarter turn (90° twist) to crush out any trapped air bubble arrays. Hold tightly for 30 seconds.
Highly Recommended
For rendering zero seepage risks across deep infrastructure frameworks, always apply BPI Heavy-Duty Solvent Cement. Expressly optimized for maximum fusion compatibility with our complete SWR series.
View Solvent Cement

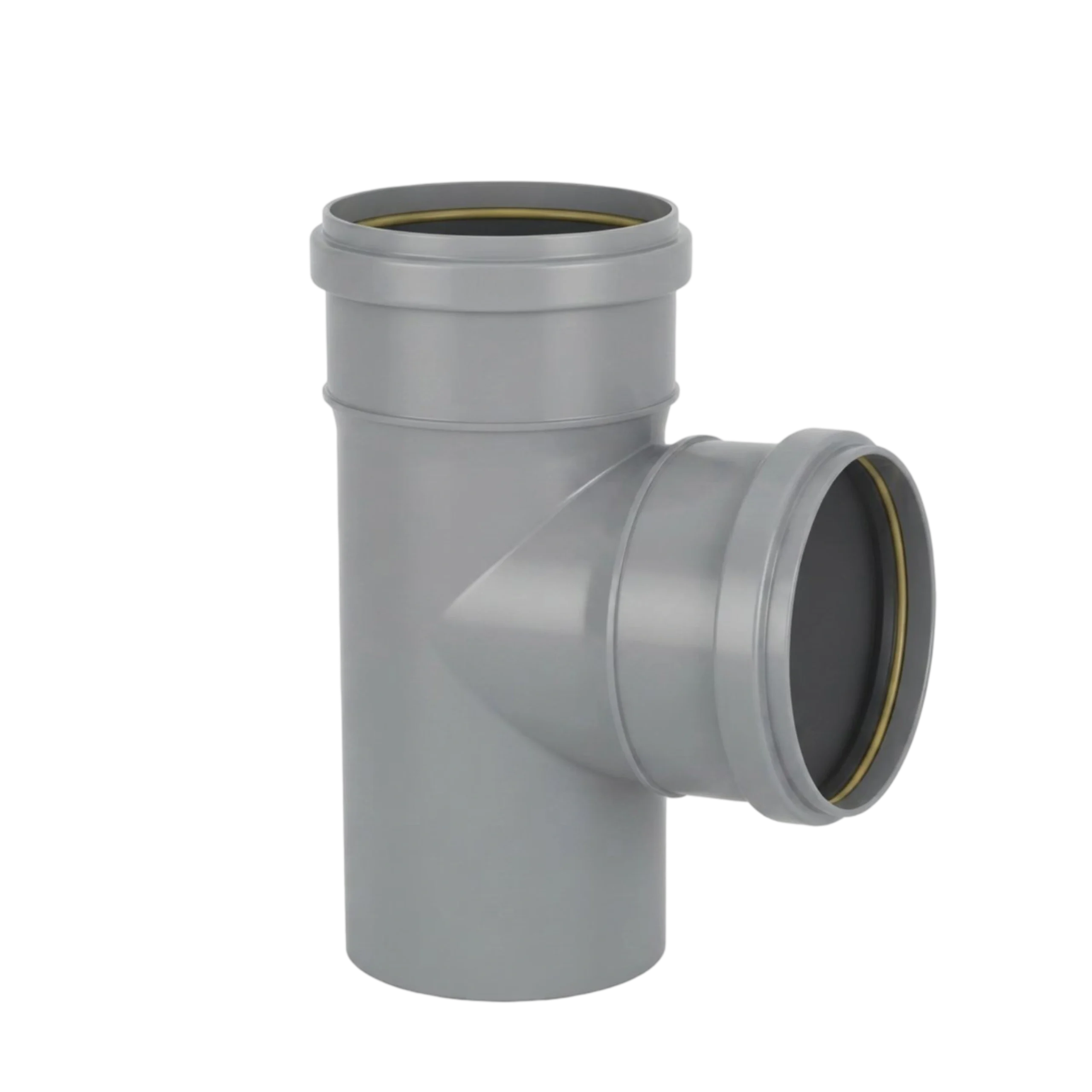

SWR Equal Tee

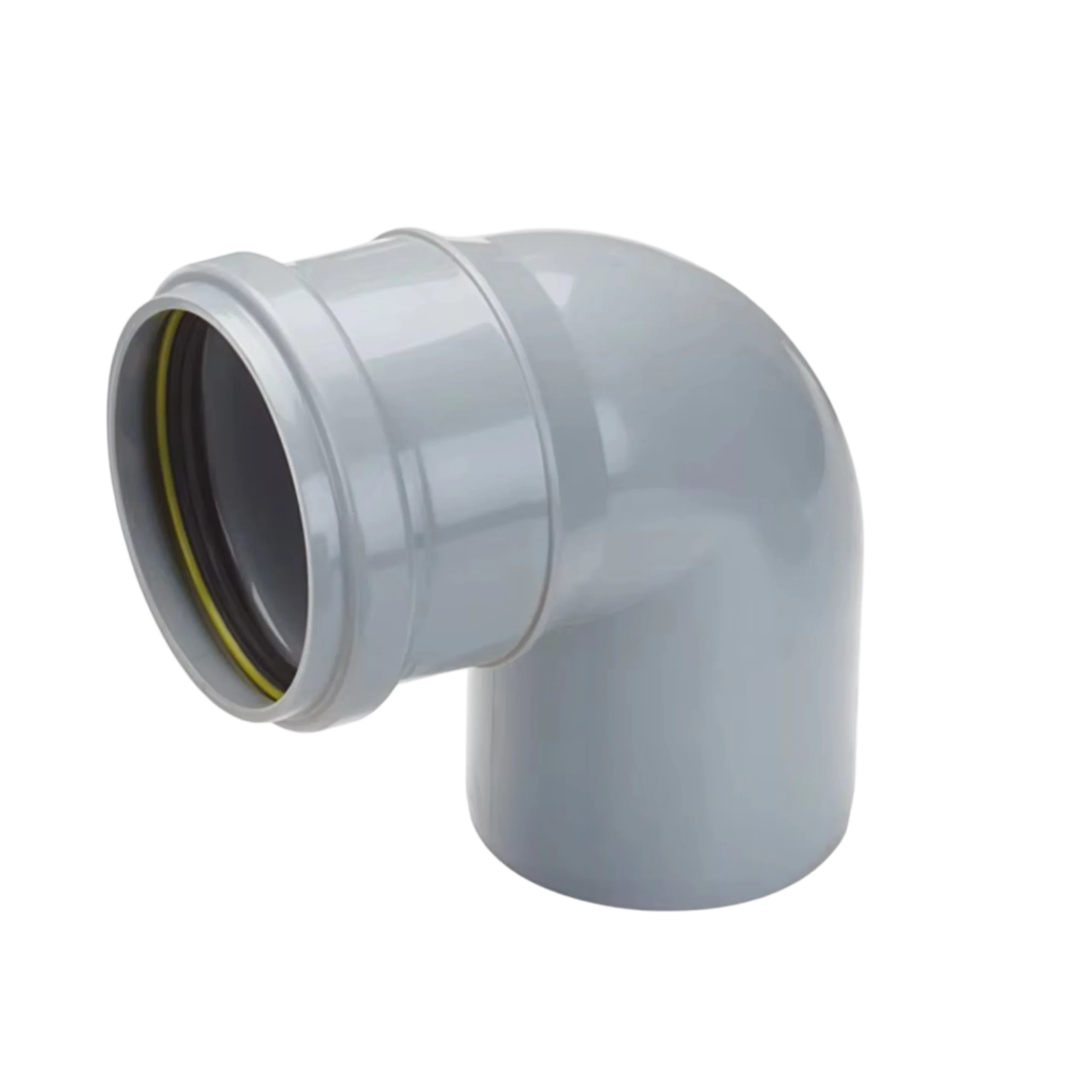

90° SWR Elbow
45° SWR Elbow
SWR Door Tee

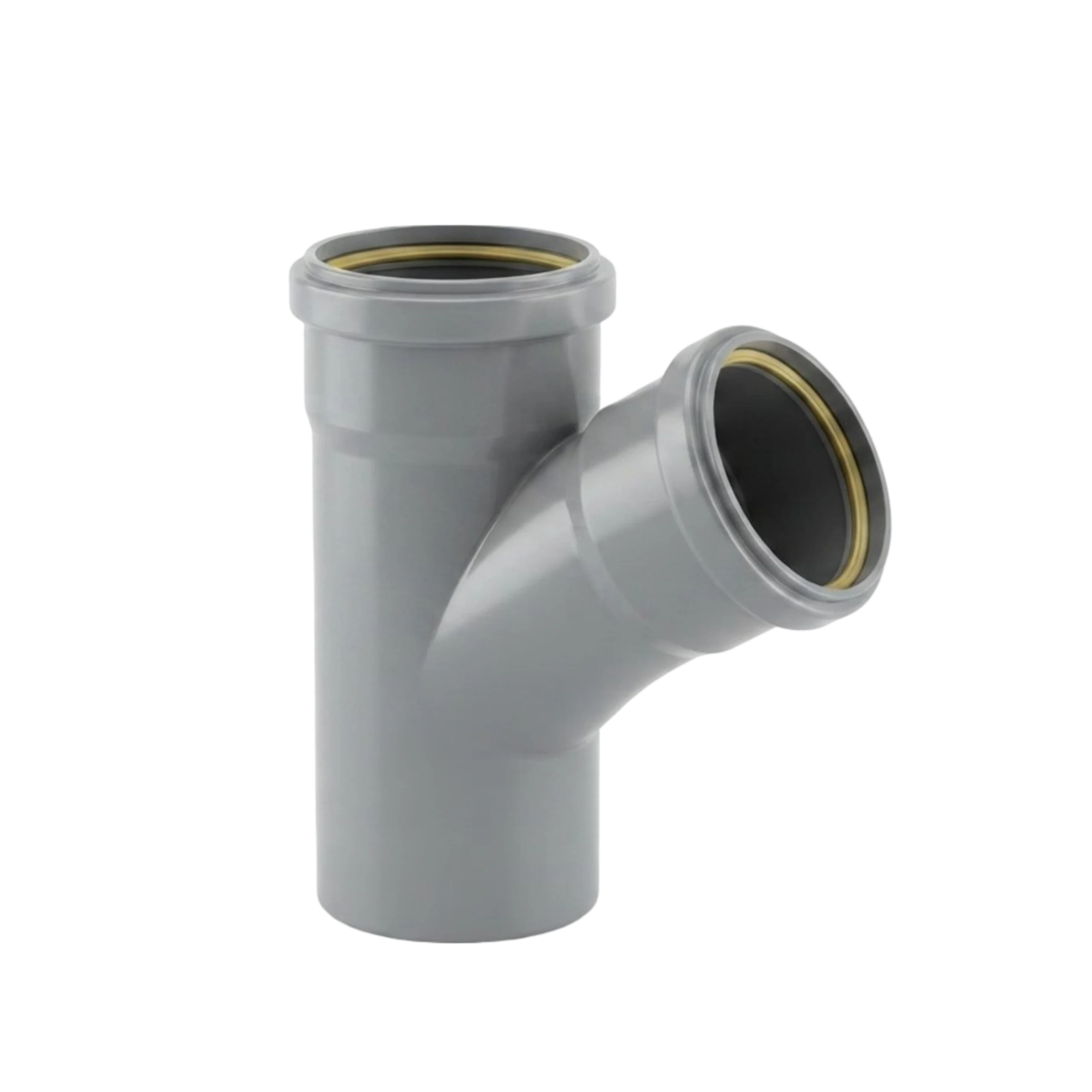

SWR Single Wye

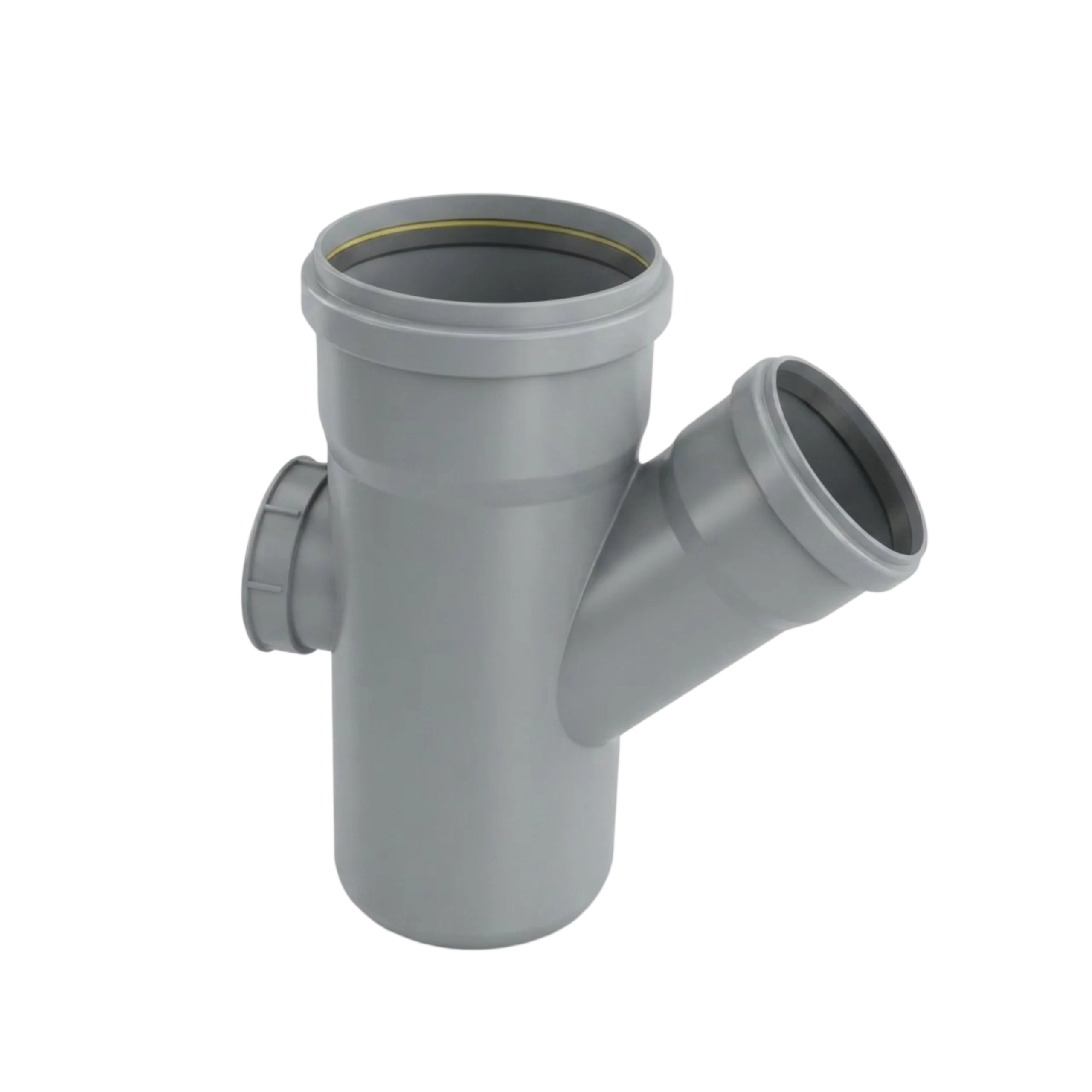

SWR Door Wye
Straight Socket

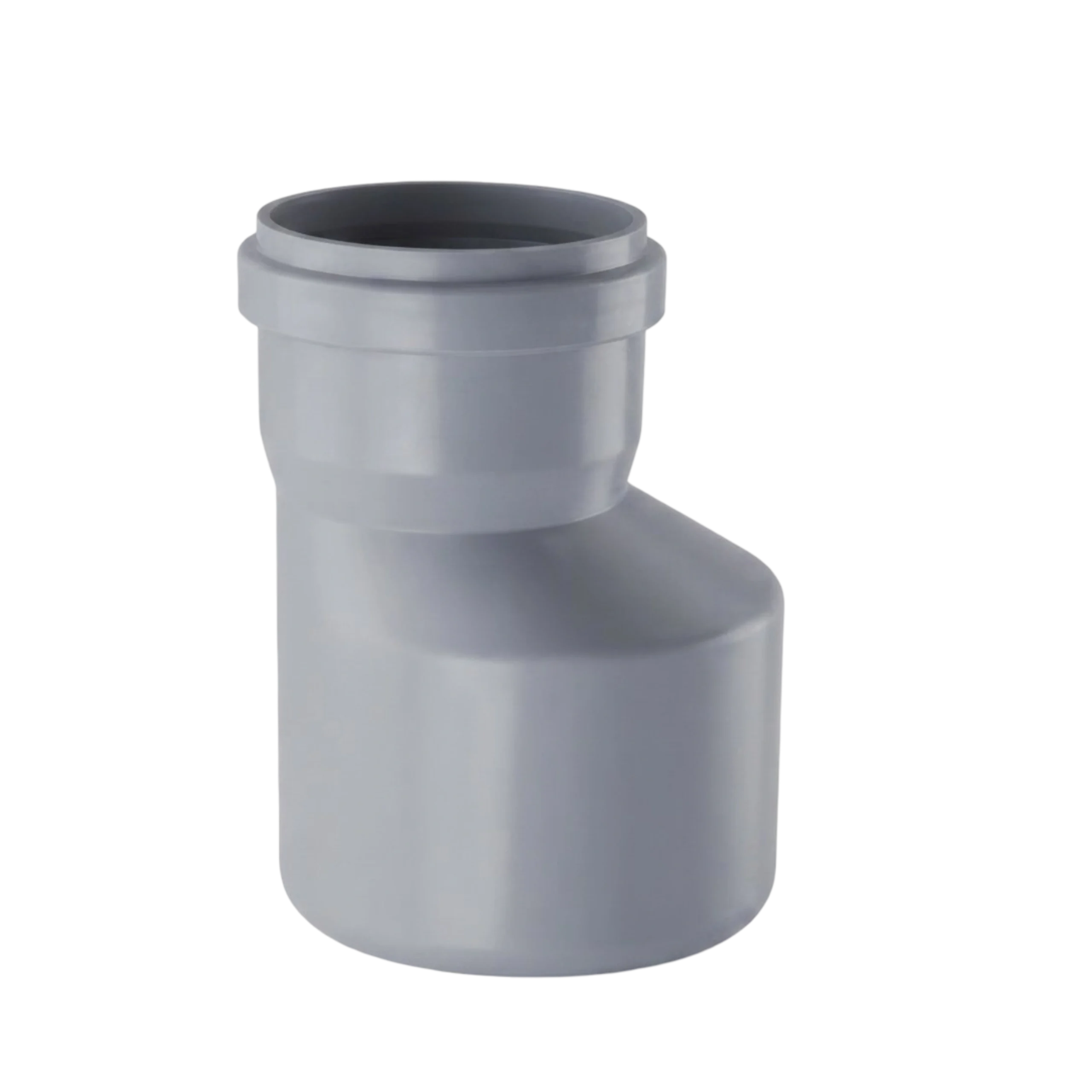

Concentric Reducer
SWR P-Trap

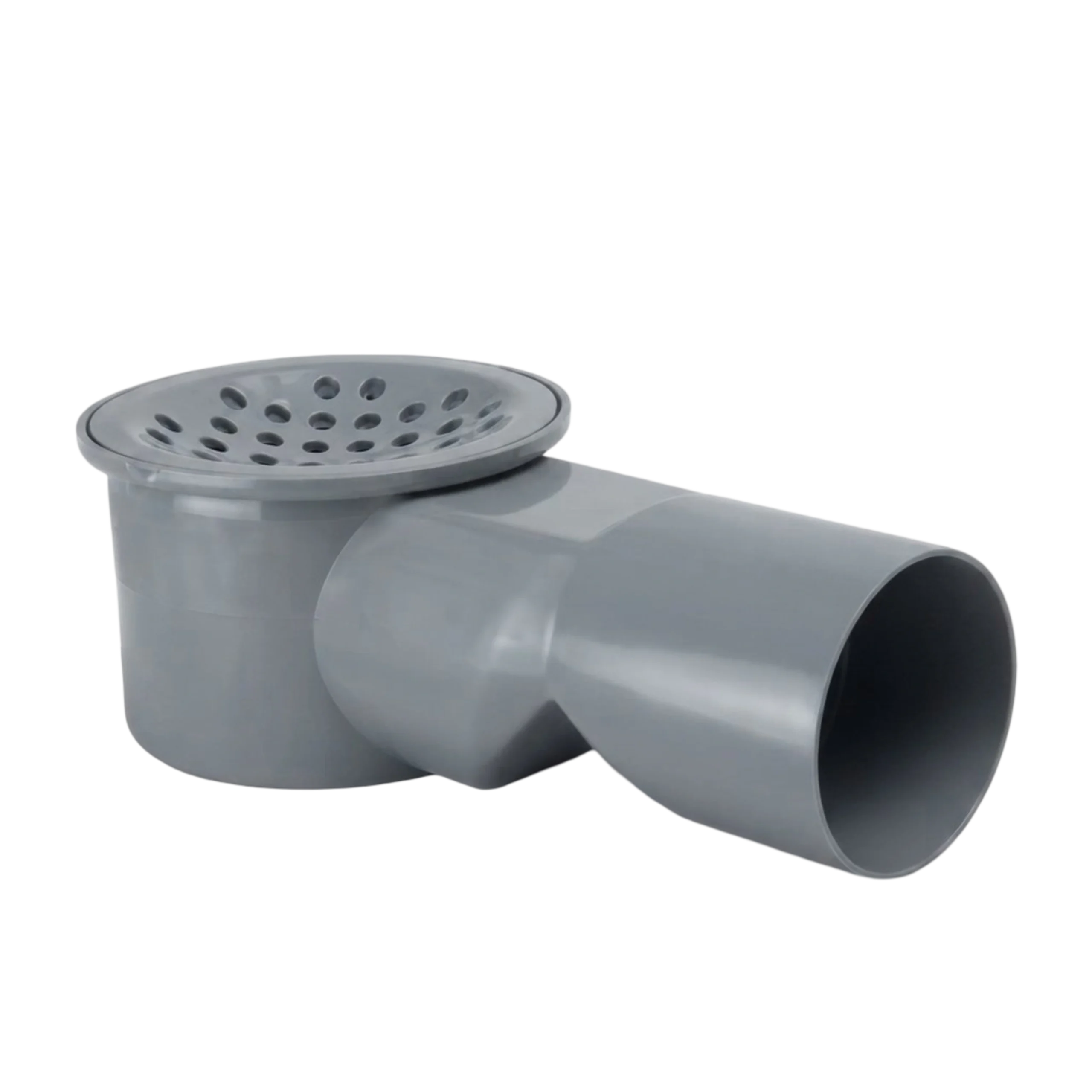

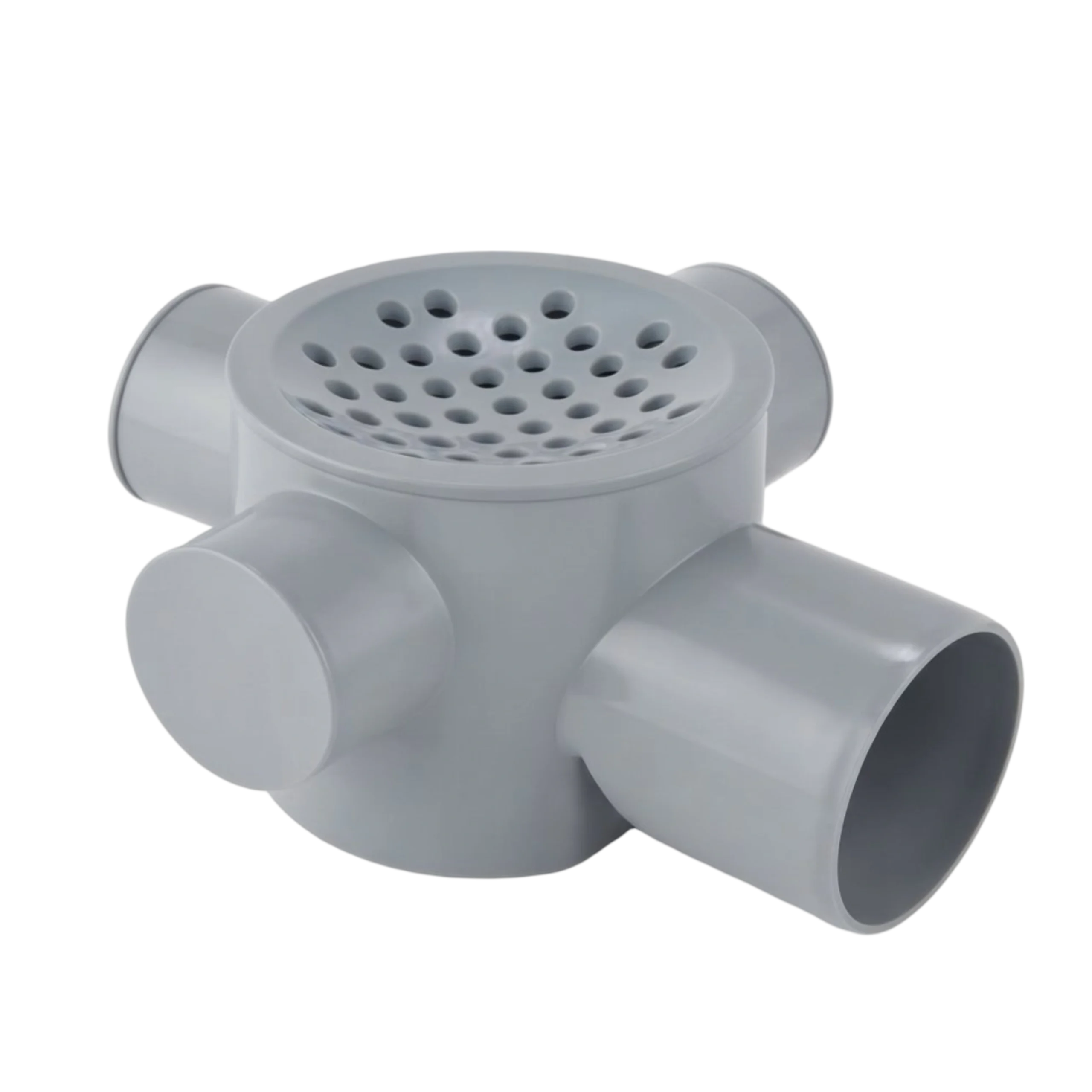

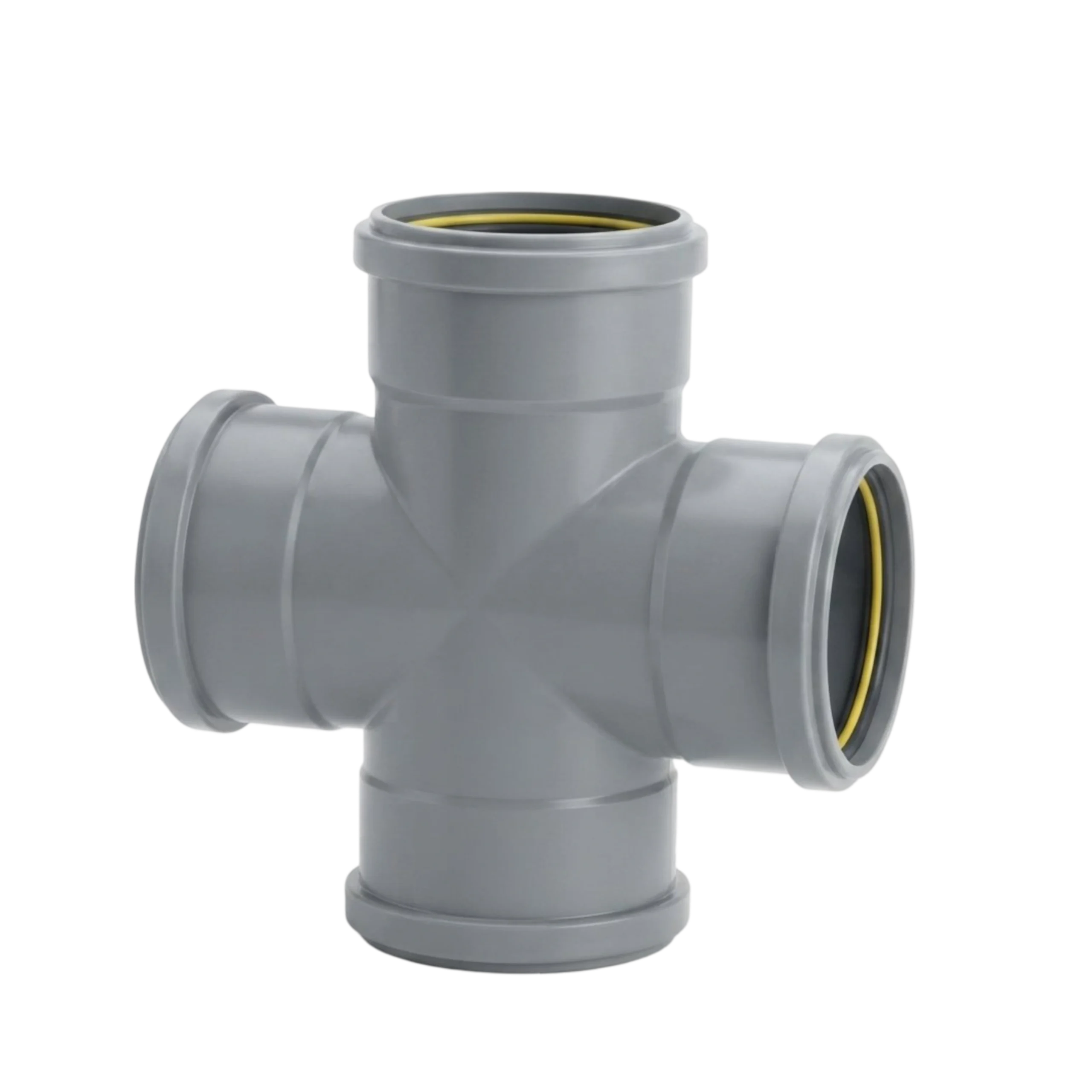

Floor Nahani Trap
SWR Vent Cowl
Clean Out Cap
SWR Drainage Pipe
The Foundation of Clean Infrastructure
Bahrain Plast Industry (BPI) offers advanced high-performance uPVC piping networks customized explicitly for architectural soil, waste, and rainwater discharge. Extruded with rigid formulation layers in Lahore, our complete SWR series is tested stringently under international European Benchmarks BS EN 1329-1 and BS EN 1401-1, completely replacing outdated options. With engineered 100% leak-proof joints, BPI guarantees long-term clog-free safety for mega-scale real estate projects.
