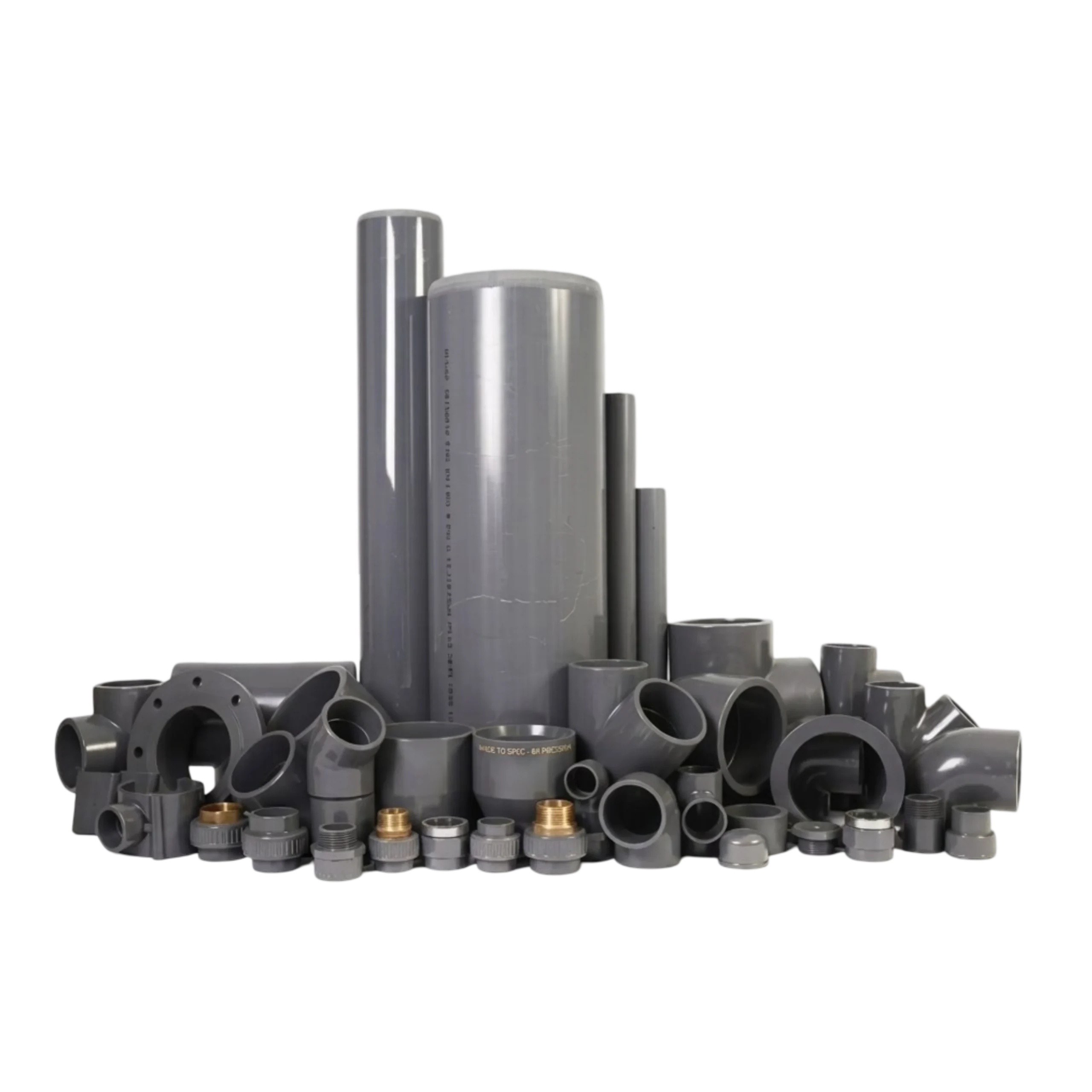

High Pressure &
Tubewell Systems
Engineered in Lahore under rigid BS-3505 and DIN 8062 laboratory standards. BPI uPVC column and casing pipes deliver unmatched high-tensile threshold structures optimized for extreme agricultural deep well boring and high-volume municipal delivery grids.
Request Factory Pricing
The Unbreakable Bond
Why professional plumbers and engineering contractors trust BPI uPVC Casing for high-pressure lines.
500ft Boring Depth
Heavy-duty industrial columns engineered carefully to securely withstand high hydrostatic crushing earth pressures and heavy extraction suction pull variables without structural deformation track shifts.
100% Zero Toxicity
Completely premium certified lead-free compound structure. Chemically synthesized to safely convey clean, completely odorless, and clear fresh water assets fit for municipal and agricultural consumption tracks.
Chemical Immunity
Absolute structural shield protection from saline aggressive soils, hard industrial alkaline vectors, and acids. Crafted explicitly to maintain a solid operational lifecycle exceeding 50+ years.
Technical & Installation Hub
Explore validated laboratory dimension charts, international pressure standards, professional jointing protocols, and verified fittings ecosystem.
| Nominal SizeInches | Outer Dia (OD)Min - Max (mm) | Class B6 Bar (200 ft head) | Class C9 Bar (300 ft head) | Class D12 Bar (400 ft head) | Class E15 Bar (500 ft head) |
|---|---|---|---|---|---|
| 1/2" | 21.2 - 21.5 | - | - | - | 1.7 - 2.1 mm |
| 3/4" | 26.6 - 26.9 | - | - | - | 1.9 - 2.5 mm |
| 1" | 33.4 - 33.7 | - | - | - | 2.2 - 2.7 mm |
| 1-1/4" | 42.1 - 42.4 | - | - | 2.2 - 2.7 mm | 2.7 - 3.2 mm |
| 1-1/2" | 48.1 - 48.4 | - | - | 2.5 - 3.0 mm | 3.1 - 3.7 mm |
| 2" | 60.2 - 60.5 | - | 2.5 - 3.0 mm | 3.1 - 3.7 mm | 3.9 - 4.5 mm |
| 2-1/2" | 75.0 - 75.3 | - | 3.0 - 3.5 mm | 3.9 - 4.5 mm | 4.8 - 5.5 mm |
| 3" | 88.7 - 89.1 | 2.9 - 3.4 mm | 3.5 - 4.1 mm | 4.6 - 5.3 mm | 5.7 - 6.6 mm |
| 4" | 114.1 - 114.5 | 3.4 - 4.0 mm | 4.5 - 5.2 mm | 6.0 - 6.9 mm | 7.3 - 8.4 mm |
| 5" | 140.0 - 140.4 | 3.8 - 4.4 mm | 5.5 - 6.4 mm | 7.3 - 8.4 mm | 9.0 - 10.4 mm |
| 6" | 168.0 - 168.5 | 4.5 - 5.2 mm | 6.6 - 7.6 mm | 8.8 - 10.2 mm | 10.8 - 12.5 mm |
| 8" | 218.8 - 219.4 | 5.3 - 6.1 mm | 7.8 - 9.0 mm | 10.3 - 11.9 mm | 12.4 - 14.5 mm |
| 10" | 272.6 - 273.4 | 6.6 - 7.6 mm | 9.7 - 11.2 mm | 12.8 - 14.8 mm | 15.7 - 18.1 mm |
| 12" | 323.4 - 324.3 | 7.8 - 9.0 mm | 11.5 - 13.3 mm | 15.2 - 17.5 mm | 18.7 - 21.6 mm |
| 14" | 355.0 - 356.0 | 8.5 - 9.8 mm | 12.6 - 14.5 mm | 16.7 - 19.2 mm | 20.5 - 23.6 mm |
| 16" | 405.9 - 406.9 | 9.7 - 11.2 mm | 14.5 - 16.7 mm | 19.0 - 21.9 mm | 23.4 - 27.0 mm |
| 18" | 456.7 - 457.7 | 11.0 - 12.7 mm | 16.3 - 18.8 mm | 21.4 - 24.6 mm | - |
| 20" | 507.5 - 508.5 | 12.2 - 14.1 mm | 18.1 - 20.9 mm | - | - |
| 24" | 609.1 - 610.1 | 14.6 - 16.8 mm | 21.7 - 25.0 mm | - | - |
| Nominal SizeInches | Outer Dia (OD)Min - Max (mm) | Wall ThicknessMin - Max (mm) | Weight MatrixMin - Max (kg/m) | Working PressurePSI Rating |
|---|---|---|---|---|
| 1/2" | 21.34 - 21.44 | 2.77 - 3.28 mm | 0.249 - 0.287 kg/m | 600 PSI |
| 3/4" | 26.67 - 26.67 | 2.87 - 3.38 mm | 0.323 - 0.327 kg/m | 480 PSI |
| 1" | 33.40 - 33.40 | 3.38 - 3.89 mm | 0.482 - 0.544 kg/m | 450 PSI |
| 1-1/4" | 42.16 - 42.16 | 3.56 - 4.07 mm | 0.651 - 0.734 kg/m | 370 PSI |
| 1-1/2" | 48.26 - 48.26 | 3.68 - 4.01 mm | 0.777 - 0.957 kg/m | 330 PSI |
| 2" | 60.32 - 60.32 | 3.91 - 4.42 mm | 1.043 - 1.168 kg/m | 280 PSI |
| 2-1/2" | 73.02 - 73.02 | 5.16 - 5.77 mm | 1.655 - 1.833 kg/m | 300 PSI |
| 3" | 88.90 - 88.90 | 5.49 - 6.15 mm | 2.178 - 2.419 kg/m | 260 PSI |
| 4" | 114.30 - 114.30 | 6.02 - 6.73 mm | 3.125 - 3.465 kg/m | 220 PSI |
| 5" | 141.30 - 141.30 | 6.55 - 7.34 mm | 4.225 - 4.700 kg/m | 190 PSI |
| 6" | 168.28 - 168.28 | 7.11 - 7.97 mm | 5.487 - 6.108 kg/m | 180 PSI |
| 8" | 219.08 - 219.08 | 8.18 - 9.17 mm | 8.140 - 9.080 kg/m | 160 PSI |
| 10" | 273.05 - 273.05 | 9.27 - 10.39 mm | 11.550 - 12.892 kg/m | 140 PSI |
| 12" | 323.85 - 323.85 | 10.31 - 11.55 mm | 15.347 - 17.112 kg/m | 130 PSI |
| 14" | 355.60 - 355.60 | 11.10 - 12.45 mm | 18.100 - 20.216 kg/m | 130 PSI |
| 16" | 406.40 - 406.40 | 12.70 - 14.22 mm | 23.657 - 26.375 kg/m | 130 PSI |
| 18" | 457.20 - 457.20 | 14.27 - 15.97 mm | 29.893 - 33.313 kg/m | 130 PSI |
| 20" | 508.00 - 508.00 | 15.06 - 16.86 mm | 35.100 - 39.141 kg/m | 120 PSI |
| 24" | 609.60 - 609.60 | 17.45 - 19.53 mm | 48.836 - 54.449 kg/m | 120 PSI |
| Nominal SizeInches | Outer Dia (OD)Min - Max (mm) | Wall ThicknessMin - Max (mm) | Weight MatrixMin - Max (kg/m) | Working PressurePSI Rating |
|---|---|---|---|---|
| 1/2" | 21.34 - 21.44 | 3.73 - 3.88 mm | 0.312 - 0.322 kg/m | 850 PSI |
| 3/4" | 26.67 - 26.77 | 3.91 - 4.42 mm | 0.422 - 0.464 kg/m | 690 PSI |
| 1" | 33.40 - 33.53 | 4.55 - 5.08 mm | 0.619 - 0.679 kg/m | 630 PSI |
| 1-1/4" | 42.16 - 42.29 | 4.85 - 5.43 mm | 0.853 - 0.941 kg/m | 520 PSI |
| 1-1/2" | 48.26 - 48.41 | 5.08 - 5.69 mm | 1.034 - 1.142 kg/m | 470 PSI |
| 2" | 60.32 - 60.47 | 5.54 - 6.20 mm | 1.430 - 1.580 kg/m | 400 PSI |
| 2-1/2" | 73.02 - 73.20 | 7.01 - 7.85 mm | 2.180 - 2.410 kg/m | 420 PSI |
| 3" | 88.90 - 89.10 | 7.62 - 8.53 mm | 2.922 - 3.230 kg/m | 370 PSI |
| 4" | 114.30 - 114.53 | 8.56 - 9.58 mm | 4.270 - 4.736 kg/m | 320 PSI |
| 5" | 141.30 - 141.55 | 9.52 - 10.66 mm | 5.920 - 6.572 kg/m | 290 PSI |
| 6" | 168.28 - 168.56 | 10.97 - 12.29 mm | 8.143 - 9.000 kg/m | 280 PSI |
| 8" | 218.08 - 219.46 | 12.70 - 14.22 mm | 12.350 - 13.729 kg/m | 250 PSI |
| 10" | 273.05 - 273.43 | 15.06 - 16.86 mm | 18.310 - 20.358 kg/m | 230 PSI |
| 12" | 323.85 - 324.23 | 17.45 - 19.53 mm | 25.210 - 28.000 kg/m | 230 PSI |
| 14" | 355.60 - 355.98 | 19.05 - 21.34 mm | 30.220 - 33.624 kg/m | 220 PSI |
| 16" | 406.40 - 406.88 | 21.41 - 23.98 mm | 38.850 - 43.220 kg/m | 220 PSI |
| 18" | 457.20 - 457.68 | 23.80 - 26.64 mm | 48.619 - 54.064 kg/m | 220 PSI |
| 20" | 508.00 - 508.58 | 26.19 - 29.34 mm | 59.480 - 66.194 kg/m | 220 PSI |
| 24" | 609.60 - 610.39 | 30.94 - 34.65 mm | 84.380 - 93.896 kg/m | 210 PSI |
| Nominal SizeInches | Outer Dia (OD)Min - Max (mm) | SDR-26 (160 PSI)Wall Thickness | SDR-32.5 (125 PSI)Wall Thickness | SDR-41 (100 PSI)Wall Thickness | SDR-64 (63 PSI)Wall Thickness |
|---|---|---|---|---|---|
| 1/2" | 21.34 - 21.44 | - | - | - | - |
| 3/4" | 26.67 - 26.77 | - | - | - | - |
| 1" | 33.40 - 33.53 | 1.52 - 2.02 mm | - | - | - |
| 1-1/4" | 42.16 - 42.29 | 1.63 - 2.13 mm | 1.52 - 2.02 mm | - | - |
| 1-1/2" | 48.26 - 48.41 | 1.85 - 2.35 mm | 1.52 - 2.02 mm | - | - |
| 2" | 60.32 - 60.47 | 2.31 - 2.81 mm | 1.85 - 2.35 mm | - | - |
| 2-1/2" | 73.02 - 73.20 | 2.79 - 3.29 mm | 2.24 - 2.73 mm | - | - |
| 3" | 88.90 - 89.10 | 3.43 - 3.93 mm | 2.74 - 3.24 mm | 2.16 - 2.67 mm | - |
| 4" | 114.30 - 114.53 | 4.39 - 4.89 mm | 3.50 - 4.00 mm | 2.79 - 3.30 mm | 1.78 - 2.29 mm |
| 5" | 141.30 - 141.55 | 5.44 - 6.12 mm | 4.34 - 4.87 mm | 3.45 - 3.95 mm | 2.21 - 2.72 mm |
| 6" | 168.28 - 168.56 | 6.48 - 7.27 mm | 5.18 - 5.79 mm | 4.11 - 4.61 mm | 2.64 - 3.15 mm |
| 8" | 219.08 - 219.46 | 8.18 - 9.20 mm | 6.73 - 7.54 mm | 5.33 - 5.95 mm | 3.43 - 3.84 mm |
| 10" | 273.05 - 273.43 | 10.49 - 11.76 mm | 8.41 - 9.43 mm | 6.65 - 7.43 mm | 4.24 - 4.78 mm |
| 12" | 323.85 - 324.23 | 12.45 - 13.95 mm | 9.96 - 11.15 mm | 7.90 - 8.84 mm | 5.05 - 5.66 mm |
| 14" | 355.60 - 355.98 | 13.66 - 15.28 mm | 10.92 - 12.24 mm | 8.66 - 9.87 mm | - |
| 16" | 406.40 - 406.88 | 15.62 - 17.50 mm | 12.50 - 14.00 mm | 9.91 - 11.30 mm | - |
| 18" | 457.20 - 457.68 | 17.58 - 19.69 mm | 14.07 - 15.75 mm | 11.15 - 12.70 mm | - |
| 20" | 508.00 - 508.58 | 19.53 - 21.87 mm | 15.62 - 17.50 mm | 12.39 - 14.12 mm | - |
| 24" | 609.00 - 610.39 | 23.44 - 26.26 mm | 18.75 - 20.99 mm | 14.86 - 16.94 mm | - |
| Nominal SizeMetric OD (mm) | PN 6SDR 34.4 (Series 2) | PN 10SDR 21 (Series 3) | PN 16SDR 13.6 (Series 4) | Application ScopeStandard Pressure |
|---|---|---|---|---|
| 20 mm | - | - | 1.5 mm | Cold Water / Distribution |
| 25 mm | - | 1.5 mm | 1.9 mm | Cold Water / Plumbing |
| 32 mm | - | 1.8 mm | 2.4 mm | Industrial / Commercial |
| 40 mm | 1.5 mm | 1.9 mm | 3.0 mm | High Pressure Line |
| 50 mm | 1.6 mm | 2.4 mm | 3.7 mm | Industrial Transmission |
| 63 mm | 2.0 mm | 3.0 mm | 4.7 mm | Main Supply Network |
| 75 mm | 2.3 mm | 3.6 mm | 5.6 mm | Water Transmission Line |
| 90 mm | 2.8 mm | 4.3 mm | 6.7 mm | Civil Works / Municipal |
| 110 mm | 3.2 mm | 5.3 mm | 8.1 mm | Town Transmission Hub |
| 125 mm | 3.7 mm | 6.0 mm | 9.2 mm | High Pressure Municipal |
| 140 mm | 4.1 mm | 6.7 mm | 10.3 mm | Primary Feeder Supply |
| 160 mm | 4.7 mm | 7.7 mm | 11.8 mm | Major Distribution Pipeline |
| 200 mm | 5.9 mm | 9.6 mm | 14.7 mm | Bulk Water Supply Trunk |
| 225 mm | 6.6 mm | 10.8 mm | 16.6 mm | Industrial High Flow Loop |
| 250 mm | 7.3 mm | 11.9 mm | 18.4 mm | Regional Water Distribution |
| 280 mm | 8.2 mm | 13.4 mm | 20.6 mm | Main Intake Header Line |
| 315 mm | 9.2 mm | 15.0 mm | 23.2 mm | Heavy Infrastructure System |
| 355 mm | 10.4 mm | 16.9 mm | 26.1 mm | Trunk Infrastructure Conduit |
| 400 mm | 11.7 mm | 19.1 mm | 29.4 mm | Master Transmission Line |
-
1
Cut, Chamfer & Clean
Ensure the uPVC pipe is cut absolute square. Remove running edge burrs completely and wipe the pipe end and internal fitting socket clean from soil dust or oil moisture grains.
-
2
Apply BPI Solvent Cement
Spread a uniform, liberal layer of BPI Industrial Heavy-Duty Solvent Cement to both the exterior pipe end layer and the interior entry slot of the fitting socket.
-
3
Insert & Twist Connection
Push the pipe firmly straight into the receiving fitting slot while executing a quarter turn (90° twist) to spread the cement uniformly across the mesh. Hold locked for 30 seconds.
-
4
Curing Matrix Lifespan
Allow the unified molecular bond joint to cure safely undisturbed before passing water test pressures. Refer to cement packages for precise dynamic environmental curing hours.
Highly Recommended
For achieving 100% leak-proof, high-pressure lifetime joints, always utilize BPI Heavy-Duty Solvent Cement. Expressly engineered for our complete uPVC pressure pipe ranges.
View Solvent Cement

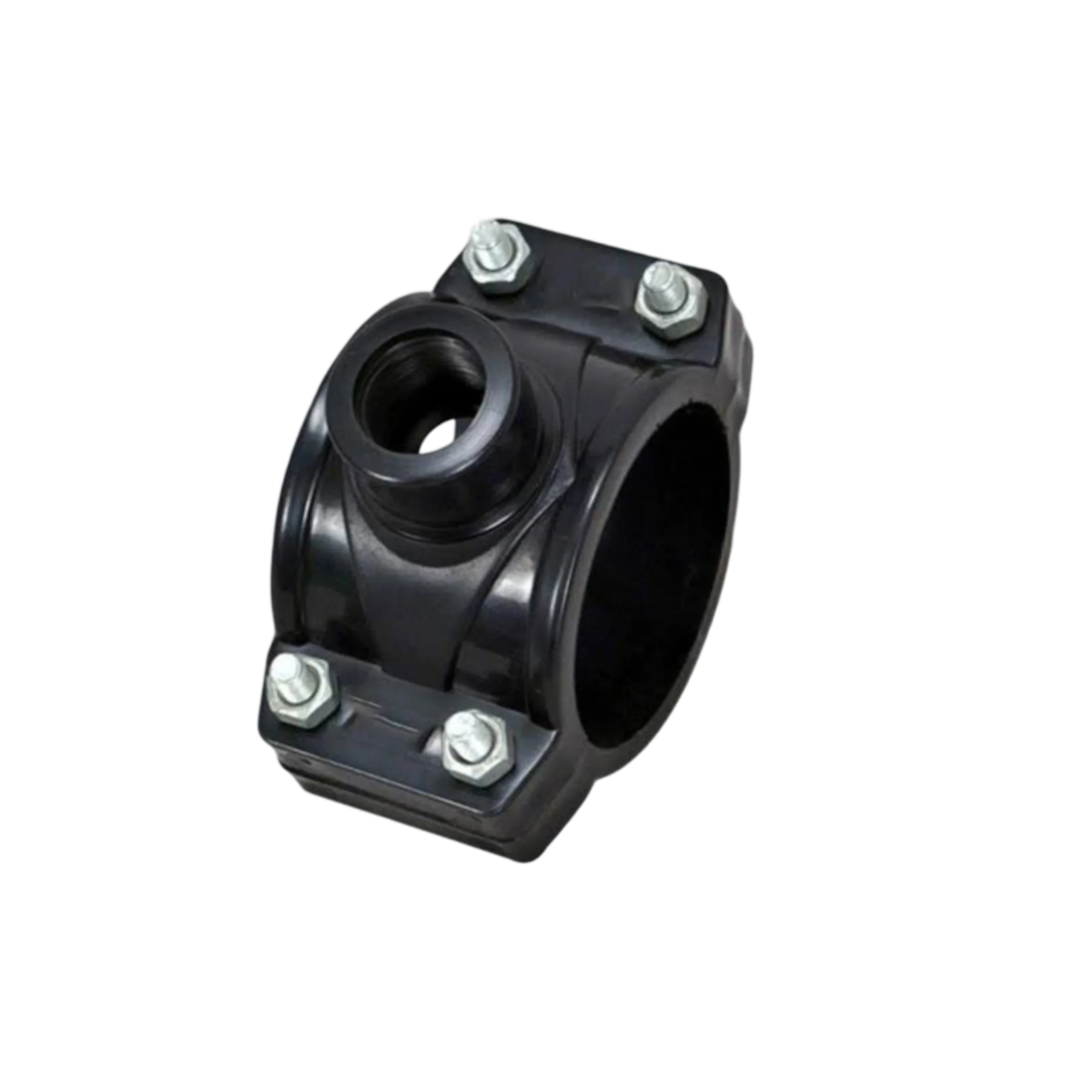

uPVC Clamp Saddle

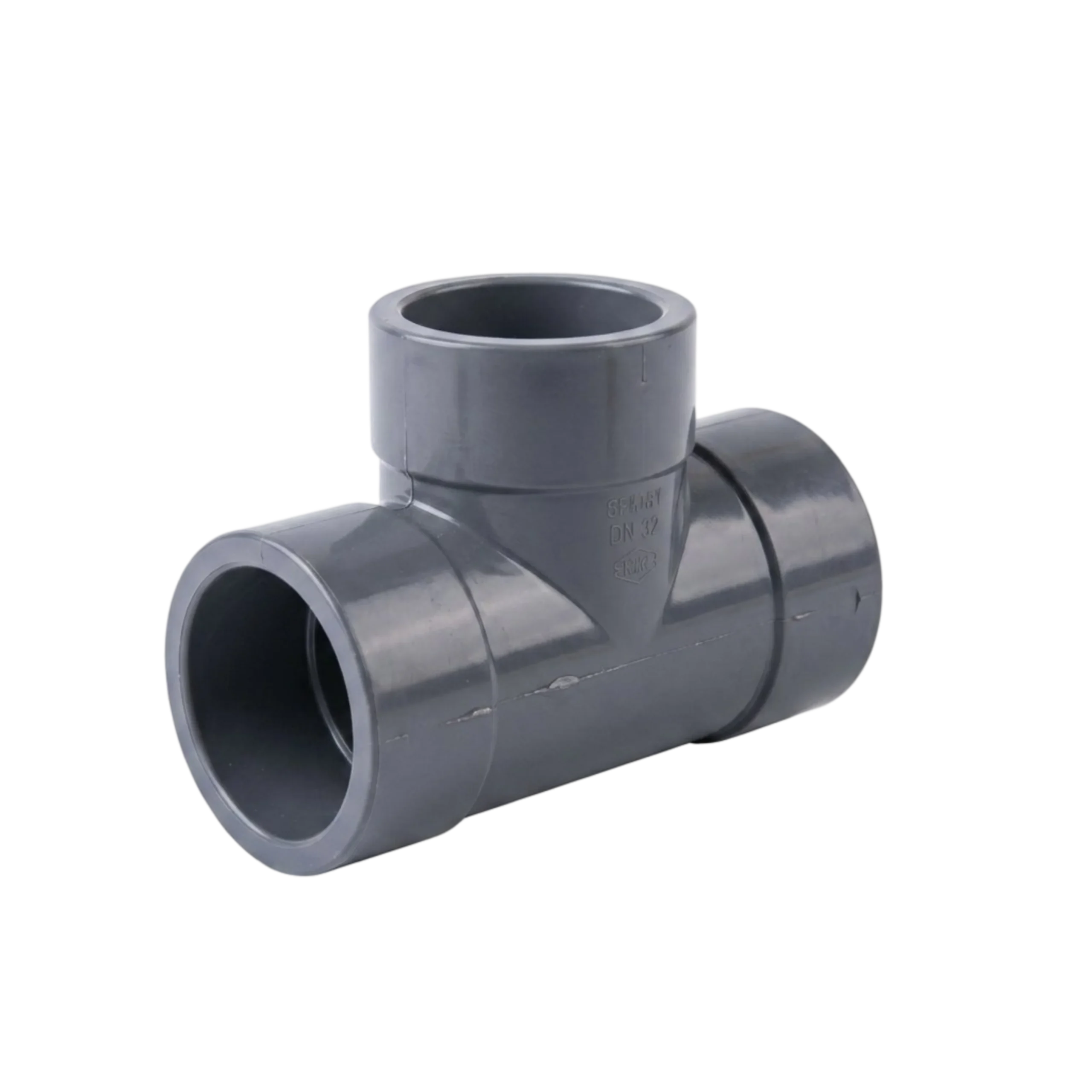

uPVC Equal Tee
90° Plain Elbow

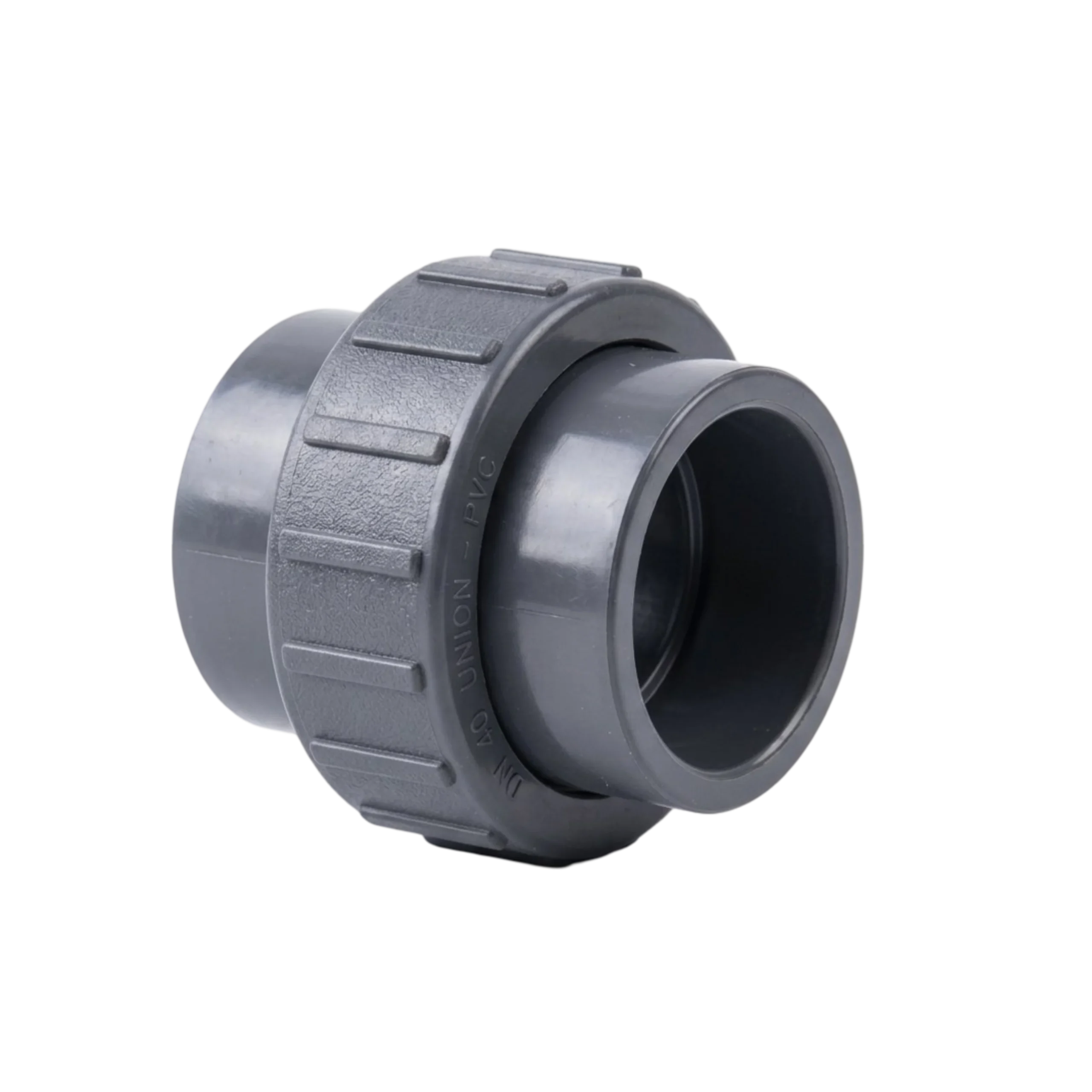

uPVC Pipe Union

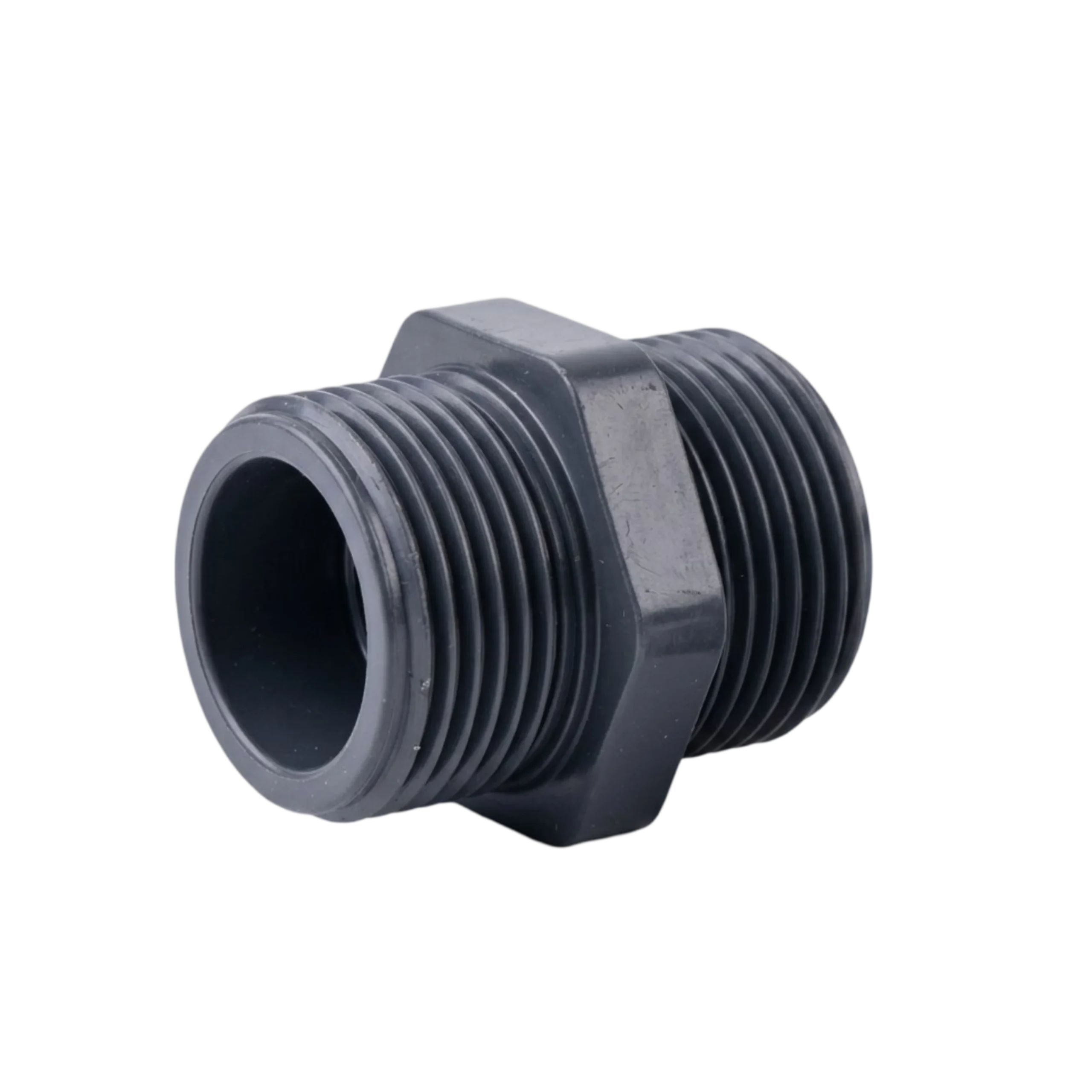

Hex Thread Nipple
Straight Socket

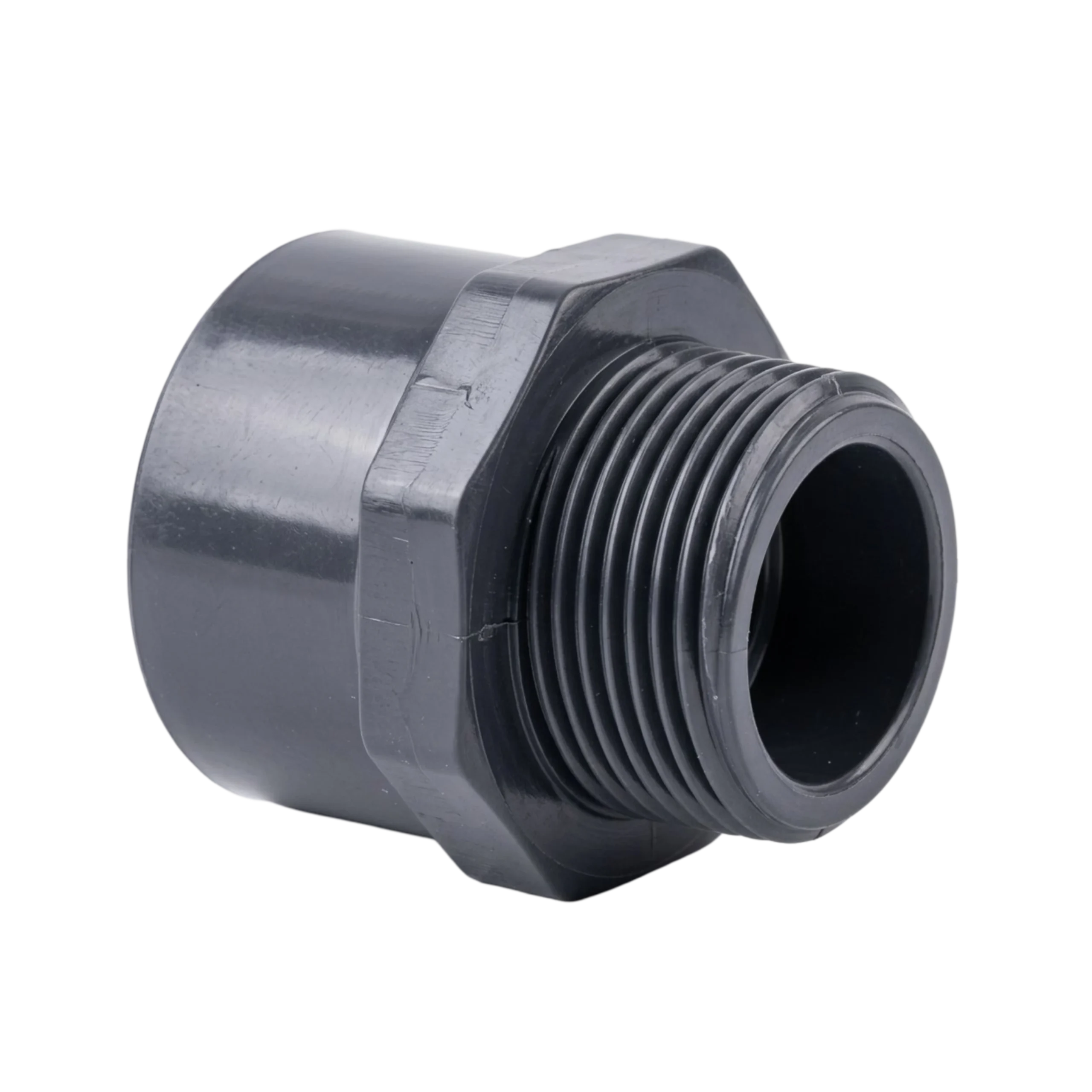

Male Valve Socket

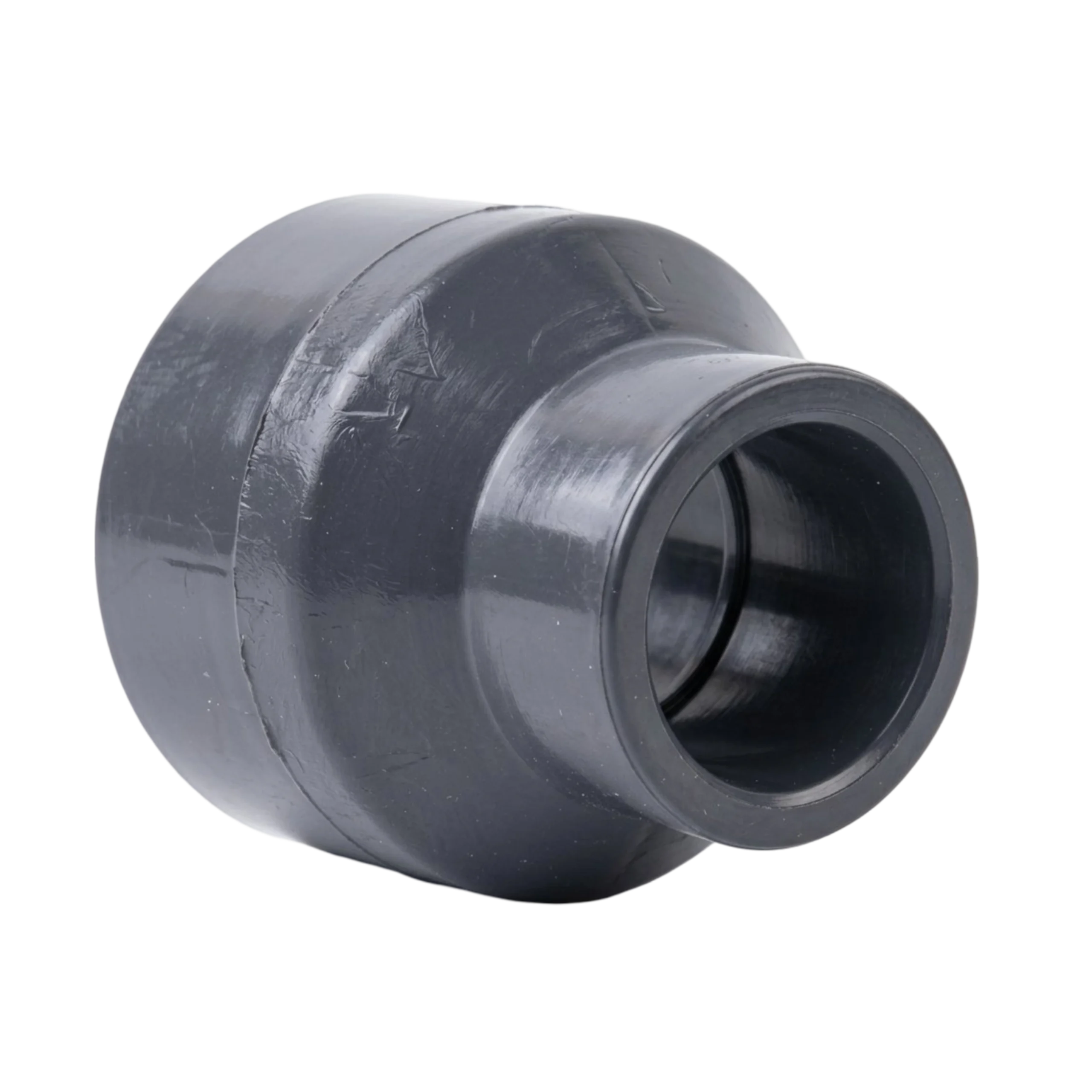

Reducing Socket
Threaded Nipple

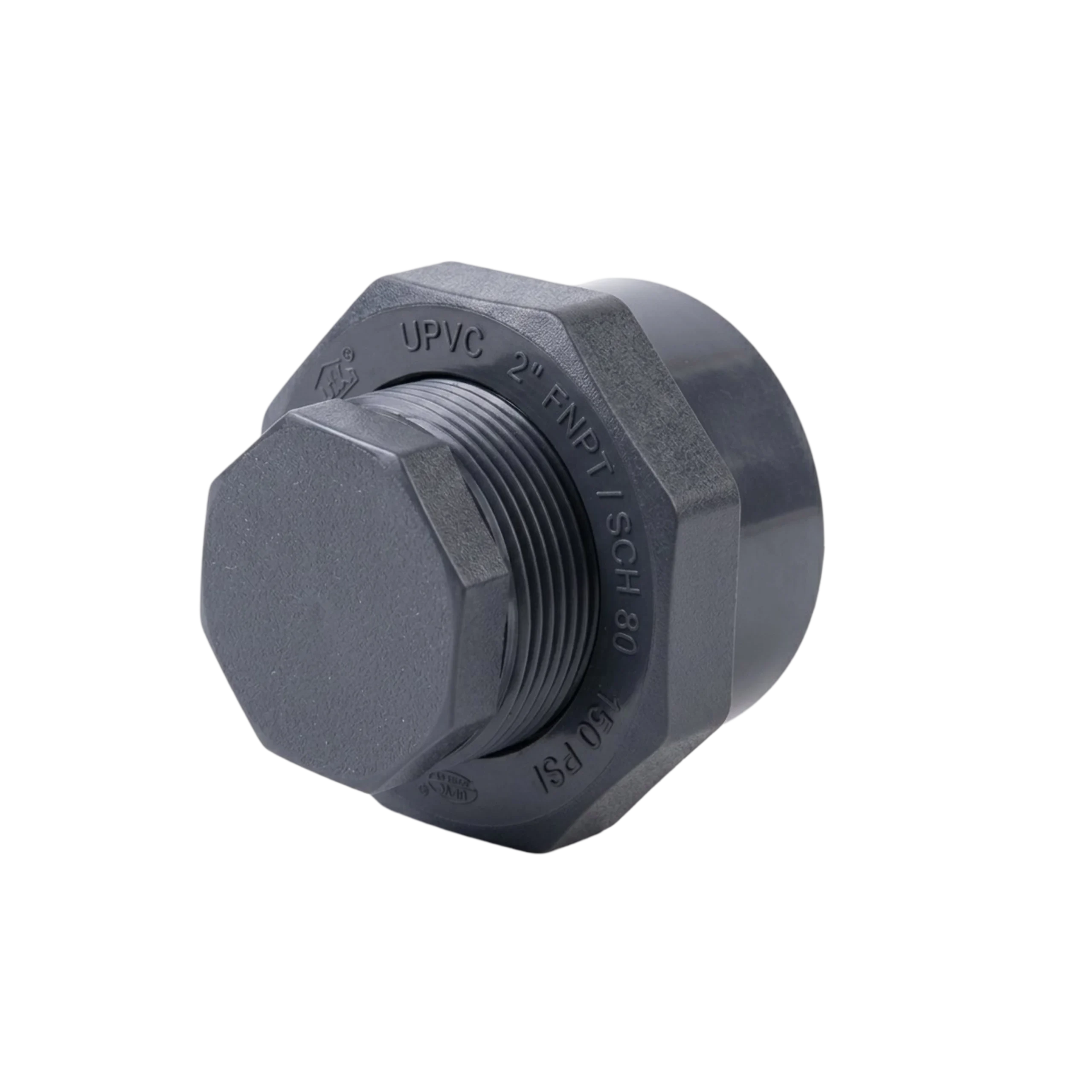

Threaded End Plug

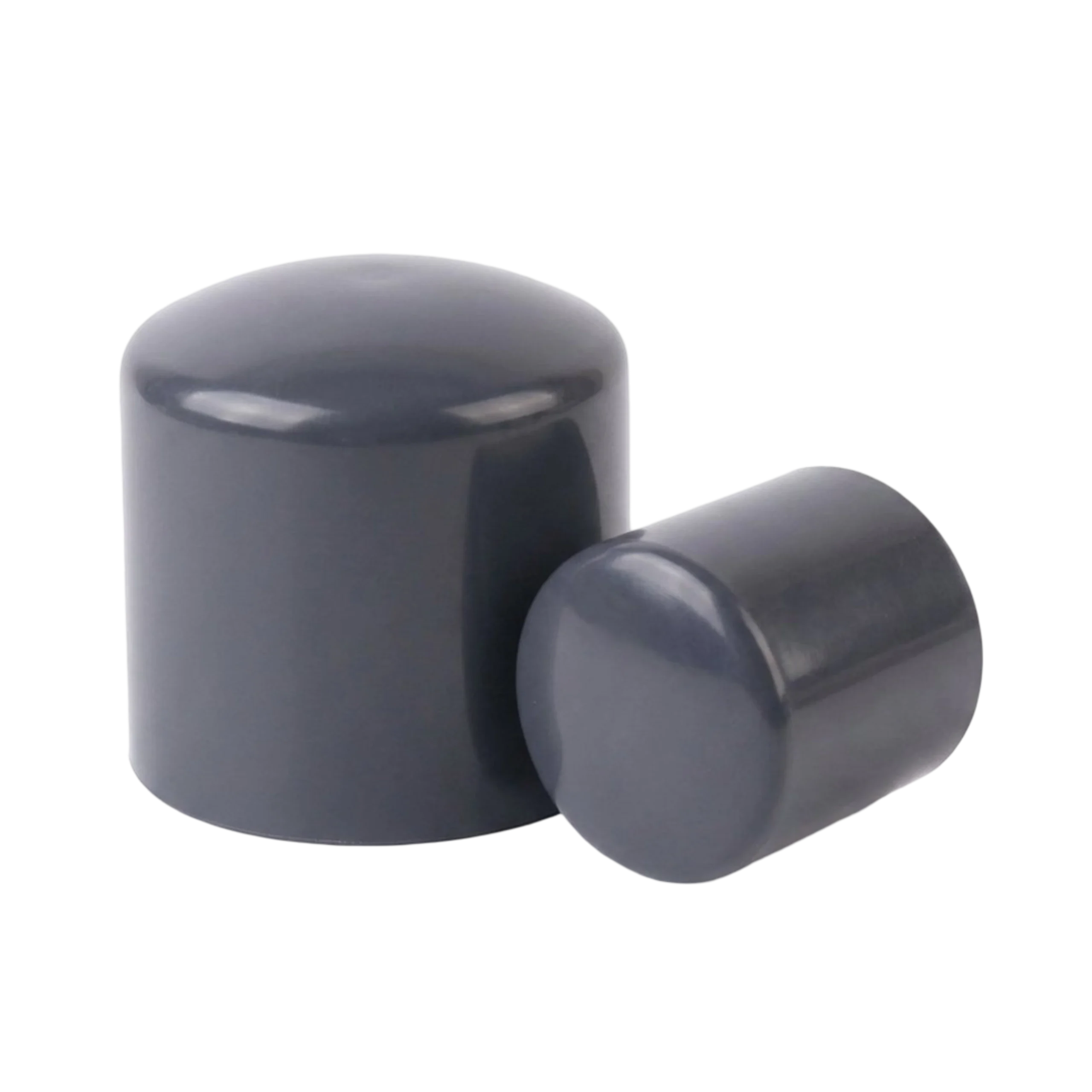

Plain End Cap
