Thermal Flow
Supremacy
Engineered with raw PPR-100 high-grade polymer. Delivering exceptional premium corrosion resistance, zero scaling toxicity, and absolute temperature retention stability for residential distribution and industrial mains.
Explore Fittings Range
Bahrain PPR-C Pipes & Fittings
Manufactured according to DIN 8077 and DIN 8078 in diverse pressure ratings and molecular copolymer compositions for critical fluid conveyance.
| Pipe DataDimension | Outside Diameter (OD)d (mm) | Wall Thickness(mm) | Pressure ClassStandard Rating | Application ScopeOperating Network |
|---|---|---|---|---|
| 20 × 3.4 | 20 mm | 3.4 mm | PN20 / SDR 6 | Hot & Cold Plumbing Line |
| 25 × 4.2 | 25 mm | 4.2 mm | PN20 / SDR 6 | Hot & Cold Plumbing Line |
| 32 × 5.4 | 32 mm | 5.4 mm | PN20 / SDR 6 | Primary Distribution Branch |
| 40 × 6.7 | 40 mm | 6.7 mm | PN20 / SDR 6 | High-Flow Commercial Supply |
| 50 × 8.3 | 50 mm | 8.3 mm | PN20 / SDR 6 | High-Pressure Central Riser |
| 63 × 10.5 | 63 mm | 10.5 mm | PN20 / SDR 6 | Central Boiler & Header Grid |
| 75 × 12.5 | 75 mm | 12.5 mm | PN20 / SDR 6 | Industrial Thermal Transport |
| 90 × 15.0 | 90 mm | 15.0 mm | PN20 / SDR 6 | Main Delivery Supply Main |
| 110 × 18.3 | 110 mm | 18.3 mm | PN20 / SDR 6 | Municipal / Commercial Main |
| 125 × 20.8 | 125 mm | 20.8 mm | PN20 / SDR 6 | Heavy Institutional Network |
| 160 × 26.6 | 160 mm | 26.6 mm | PN20 / SDR 6 | Industrial Plant Infrastructure |
| Pipe DataDimension | Outside Diameter (OD)d (mm) | Wall Thickness(mm) | Pressure ClassStandard Rating | Application ScopeOperating Network |
|---|---|---|---|---|
| 20 × 2.8 | 20 mm | 2.8 mm | PN16 / SDR 7.4 | Domestic Cold & Hot Water Line |
| 25 × 3.5 | 25 mm | 3.5 mm | PN16 / SDR 7.4 | Domestic Cold & Hot Water Line |
| 32 × 4.4 | 32 mm | 4.4 mm | PN16 / SDR 7.4 | Residential Distribution Branch |
| 40 × 5.5 | 40 mm | 5.5 mm | PN16 / SDR 7.4 | Commercial Water Supply Line |
| 50 × 6.9 | 50 mm | 6.9 mm | PN16 / SDR 7.4 | Commercial Main Riser Line |
| 63 × 8.6 | 63 mm | 8.6 mm | PN16 / SDR 7.4 | Building Header & Supply Loop |
| 75 × 10.3 | 75 mm | 10.3 mm | PN16 / SDR 7.4 | Industrial Water Transmission |
| 90 × 12.3 | 90 mm | 12.3 mm | PN16 / SDR 7.4 | Main Delivery Supply Network |
| 110 × 15.1 | 110 mm | 15.1 mm | PN16 / SDR 7.4 | Primary Water Trunk Line |
| 125 × 17.1 | 125 mm | 17.1 mm | PN16 / SDR 7.4 | Institutional High Flow Network |
| 160 × 21.9 | 160 mm | 21.9 mm | PN16 / SDR 7.4 | Industrial Distribution Infrastructure |
| Pipe DataDimension | Outside Diameter (OD)Min - Max (mm) | Wall ThicknessMin - Max (mm) | Pressure ClassStandard Rating | Application ScopeOperating Network |
|---|---|---|---|---|
| 20 × 4.1 | 20.0 - 20.3 mm | 4.1 - 4.8 mm | PN25 / SDR 5 | High-Pressure Central Riser Line |
| 25 × 5.1 | 25.0 - 25.3 mm | 5.1 - 5.9 mm | PN25 / SDR 5 | High-Pressure Central Riser Line |
| 32 × 6.5 | 32.0 - 32.3 mm | 6.5 - 7.4 mm | PN25 / SDR 5 | Heavy-Duty Distribution Header |
| 40 × 8.1 | 40.0 - 40.4 mm | 8.1 - 9.2 mm | PN25 / SDR 5 | High-Flow Commercial Header Grid |
| 50 × 10.1 | 50.0 - 50.5 mm | 10.1 - 11.4 mm | PN25 / SDR 5 | Central Heating & Boiler Loop |
| 63 × 12.7 | 63.0 - 63.6 mm | 12.7 - 14.2 mm | PN25 / SDR 5 | Heavy Industrial Thermal Transmission |
Cut & Deburr
Cut the PPRC pipe square with a sharp pipe cutter. Ensure no burrs, shavings, or moisture remain on the insertion surface.
Dual Heating
Heat the ends of both pipe and fitting simultaneously using calibrated heating dies according to recommended heating times.
Axial Assembly
Push the pipe directly into the fitting socket axially without twisting. Ensure perfect angular alignment within the working time limit.
Molecular Cooling
Hold the assembled joint firmly locked. Allow to cool completely undisturbed to achieve a 100% leak-proof, homogeneous weld.
| Nominal Outside DiameterOD (mm) | Welding DepthInsertion (mm) | Average Heating TimeWelding Tool (Sec) | Average Working TimeJoint Alignment (Sec) | Average Cooling TimeUndisturbed (Min) |
|---|---|---|---|---|
| 20 mm | 14 mm | 6 Sec | 4 Sec | 2 Min |
| 25 mm | 16 mm | 7 Sec | 4 Sec | 2 Min |
| 32 mm | 18 mm | 8 Sec | 6 Sec | 4 Min |
| 40 mm | 20 mm | 12 Sec | 6 Sec | 4 Min |
| 50 mm | 23 mm | 18 Sec | 6 Sec | 4 Min |
| 63 mm | 26 mm | 24 Sec | 8 Sec | 6 Min |
| 75 mm | 28 mm | 30 Sec | 10 Sec | 8 Min |
| 90 mm | 30 mm | 40 Sec | 11 Sec | 8 Min |
| 110 mm | 33 mm | 50 Sec | 12 Sec | 8 Min |

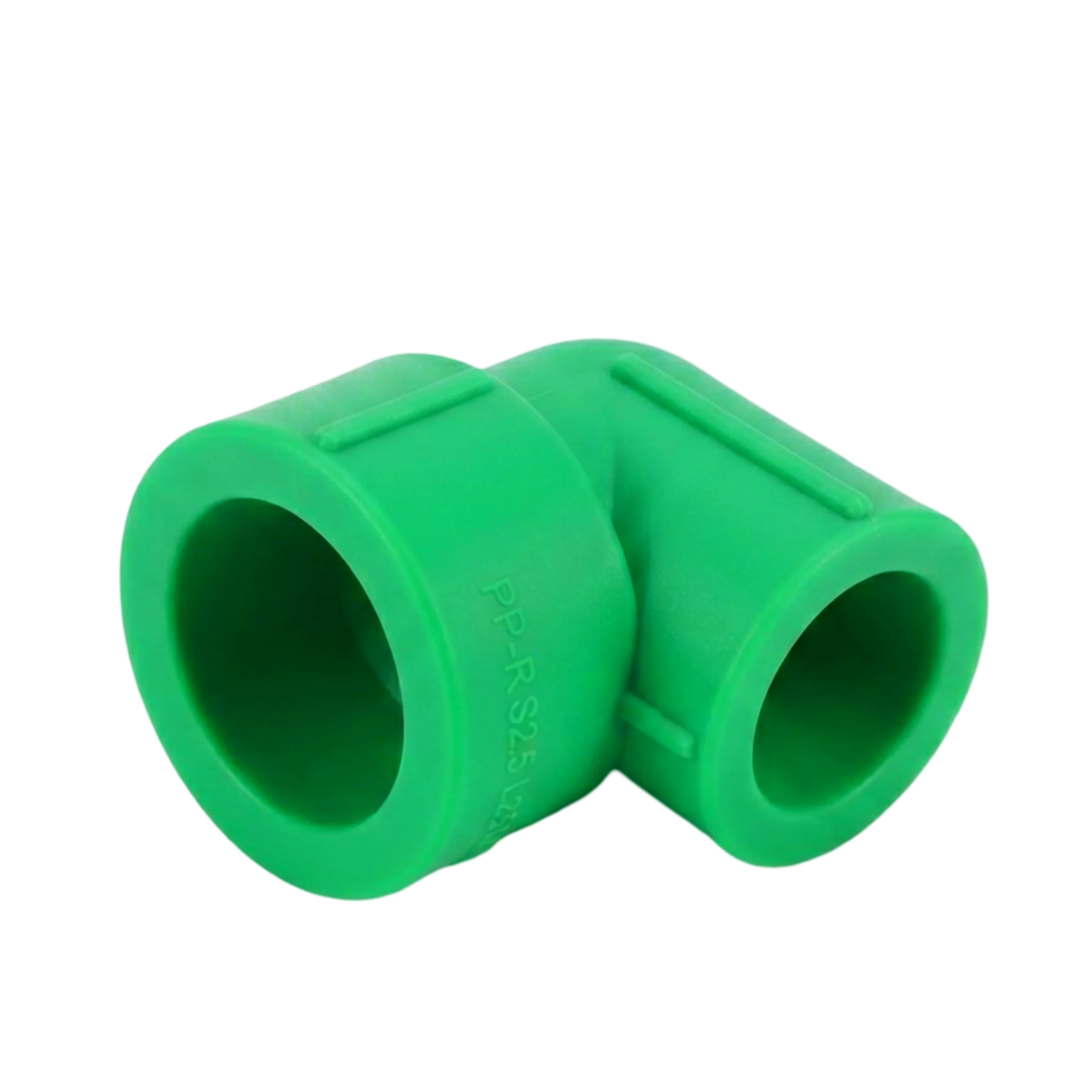

Reducing Elbow
Directional Sizing Step-Down Turn
Reducing Tee
3-Way Step-Down Distribution

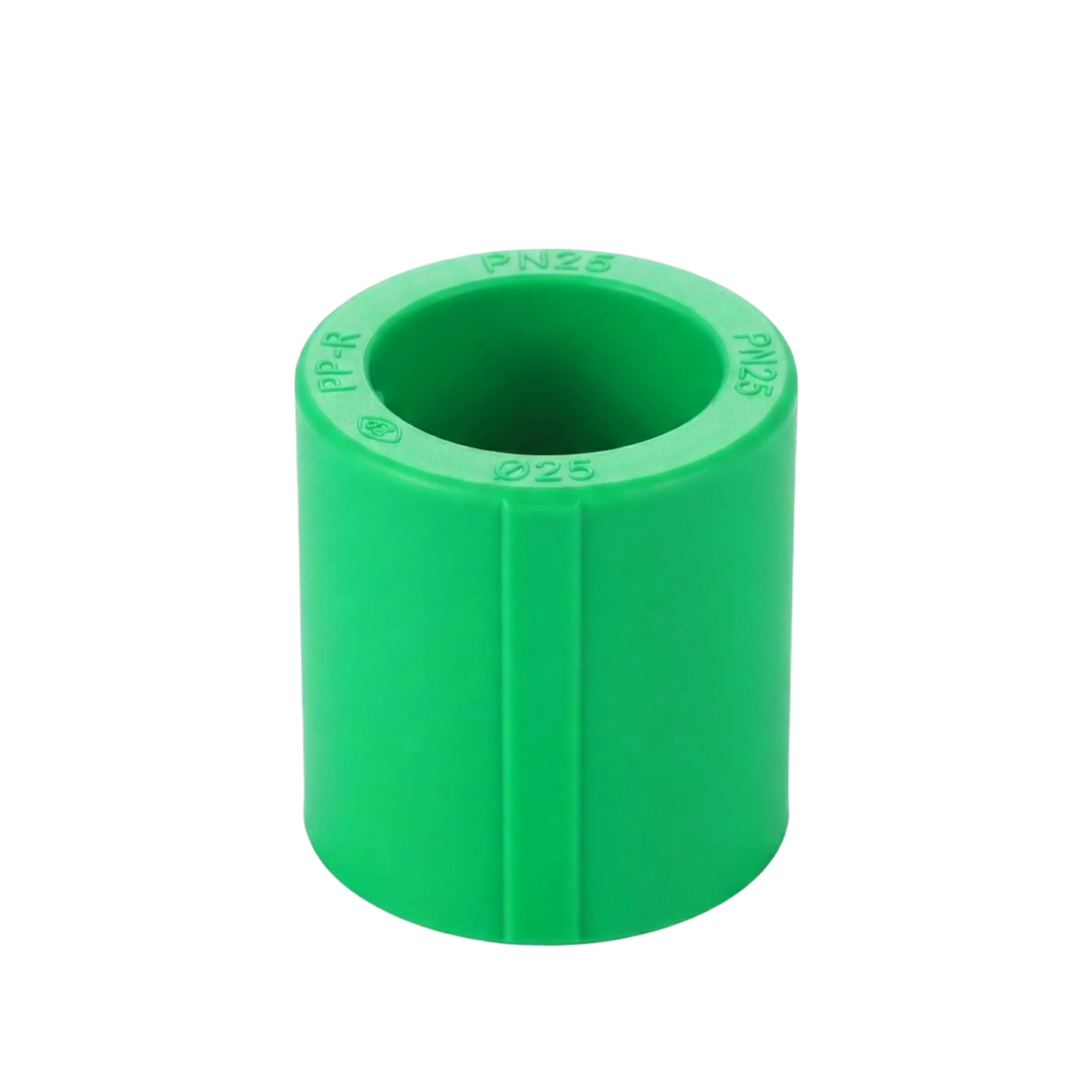

Plain Socket
Straight Pipeline Coupling Socket
Reducing Socket
Diameter Linear Size Reduction
PPRC Pipe Clip
Wall Mounting Base Bracket

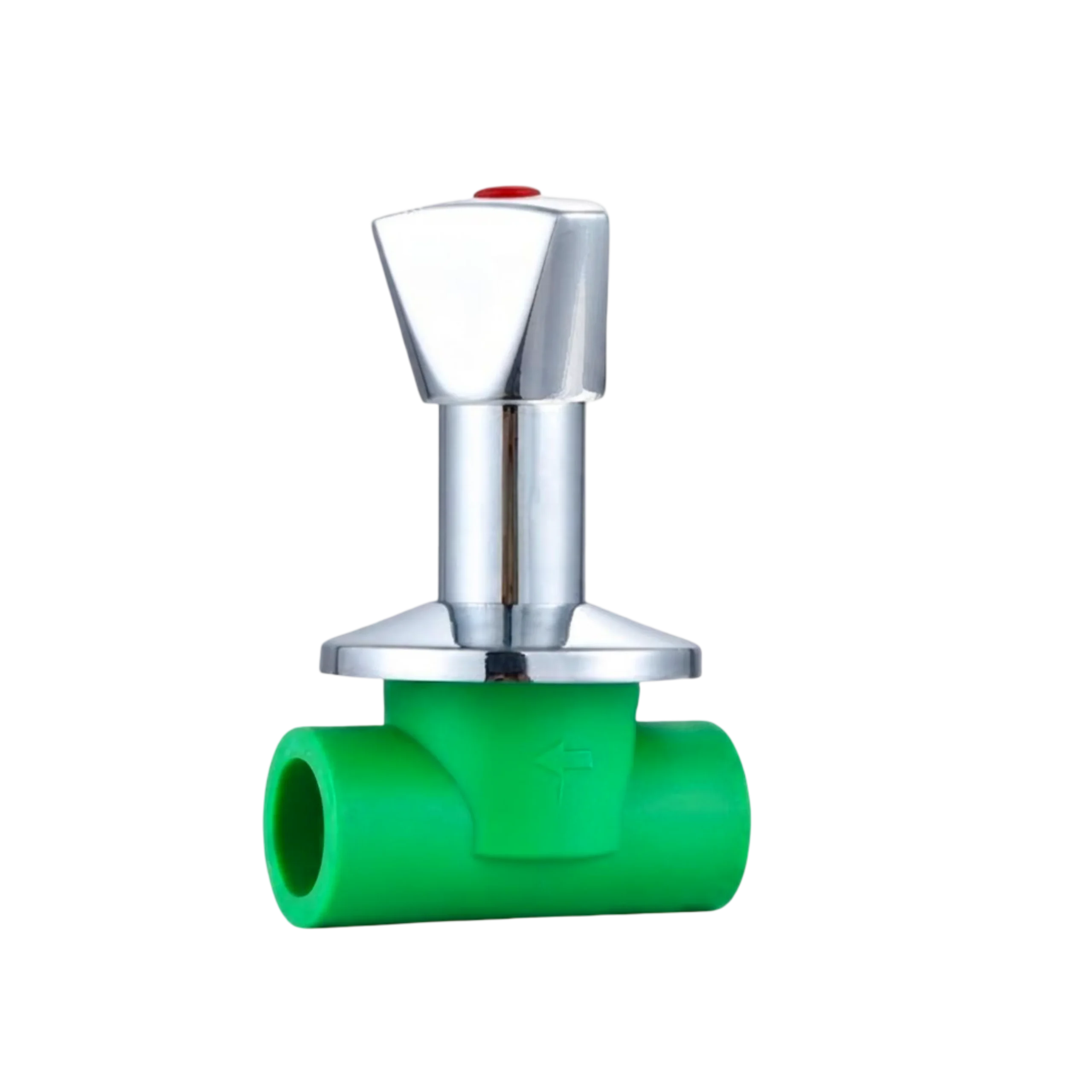

Concealed Valve
Chrome Plated Knob Core Control
Premium Ball Valve
Red Lever Manual Cutoff Block
PPRC Pipe Union
Interchangeable Dismantling Joint

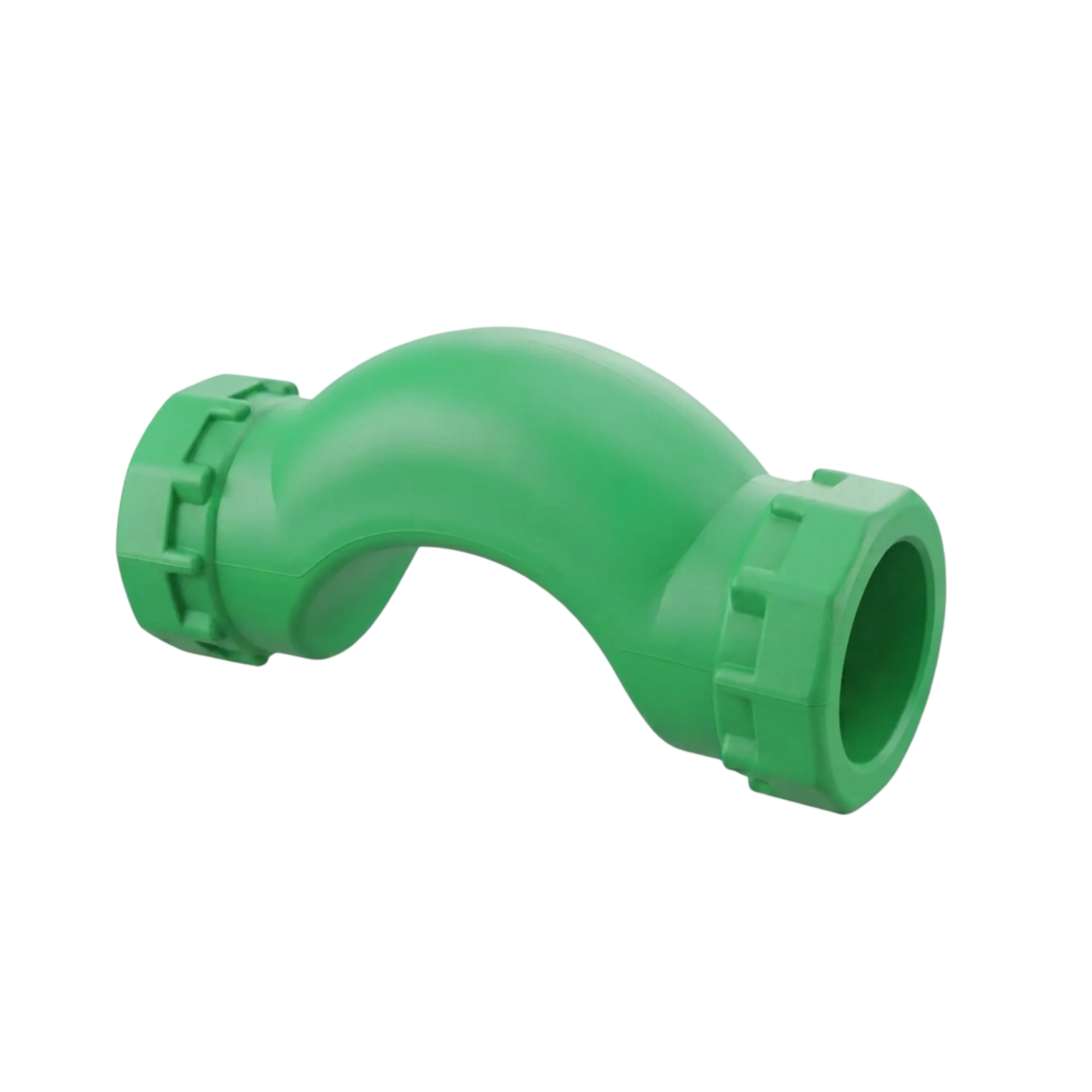

Crossover Loop
Overbridge Network Crossing
Hex Threaded Plug
Temporary End Terminal Testing Seal
Female Thread Socket
Metallic Transition Thread Connector

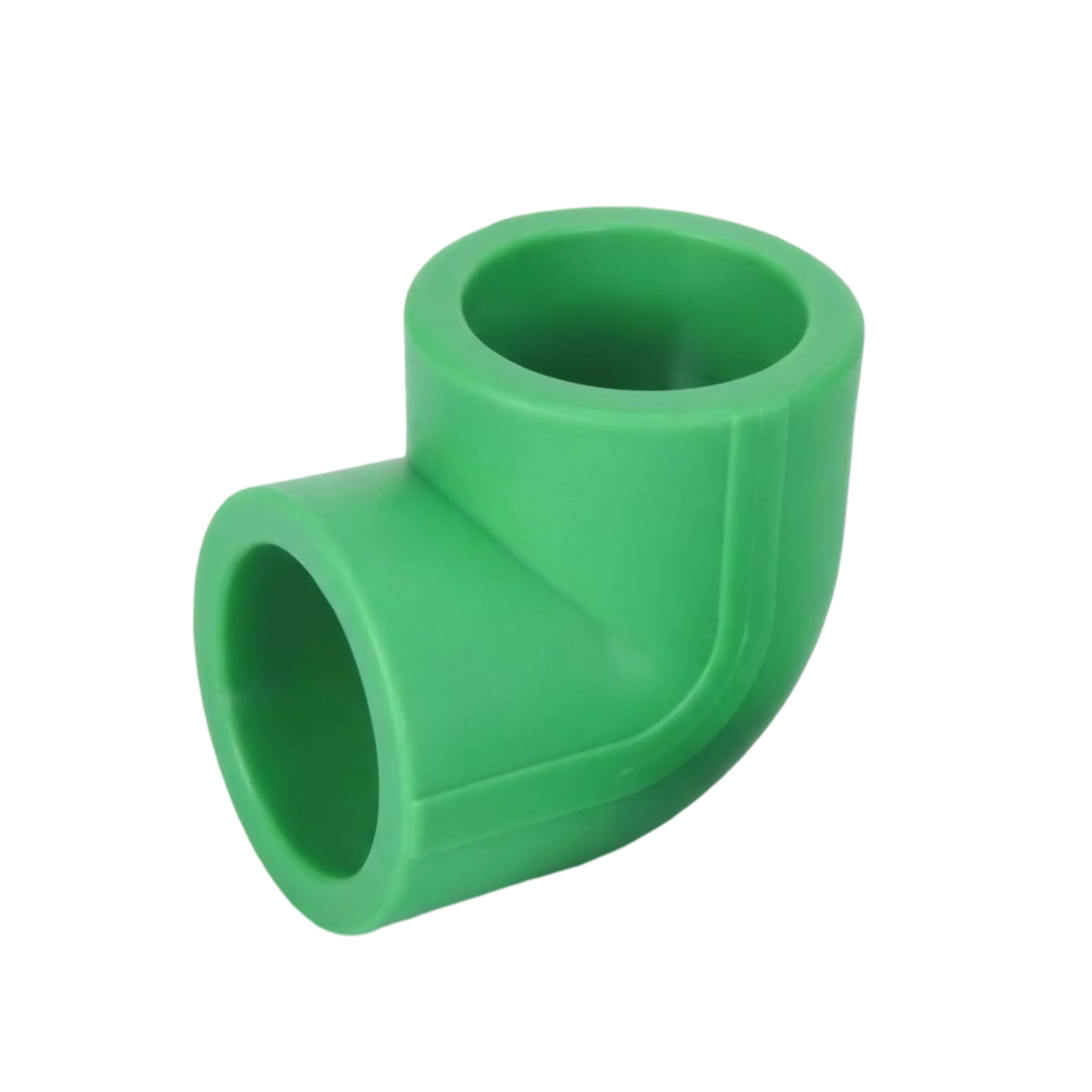

90° Plain Elbow
Plain Symmetrical Corner Connection

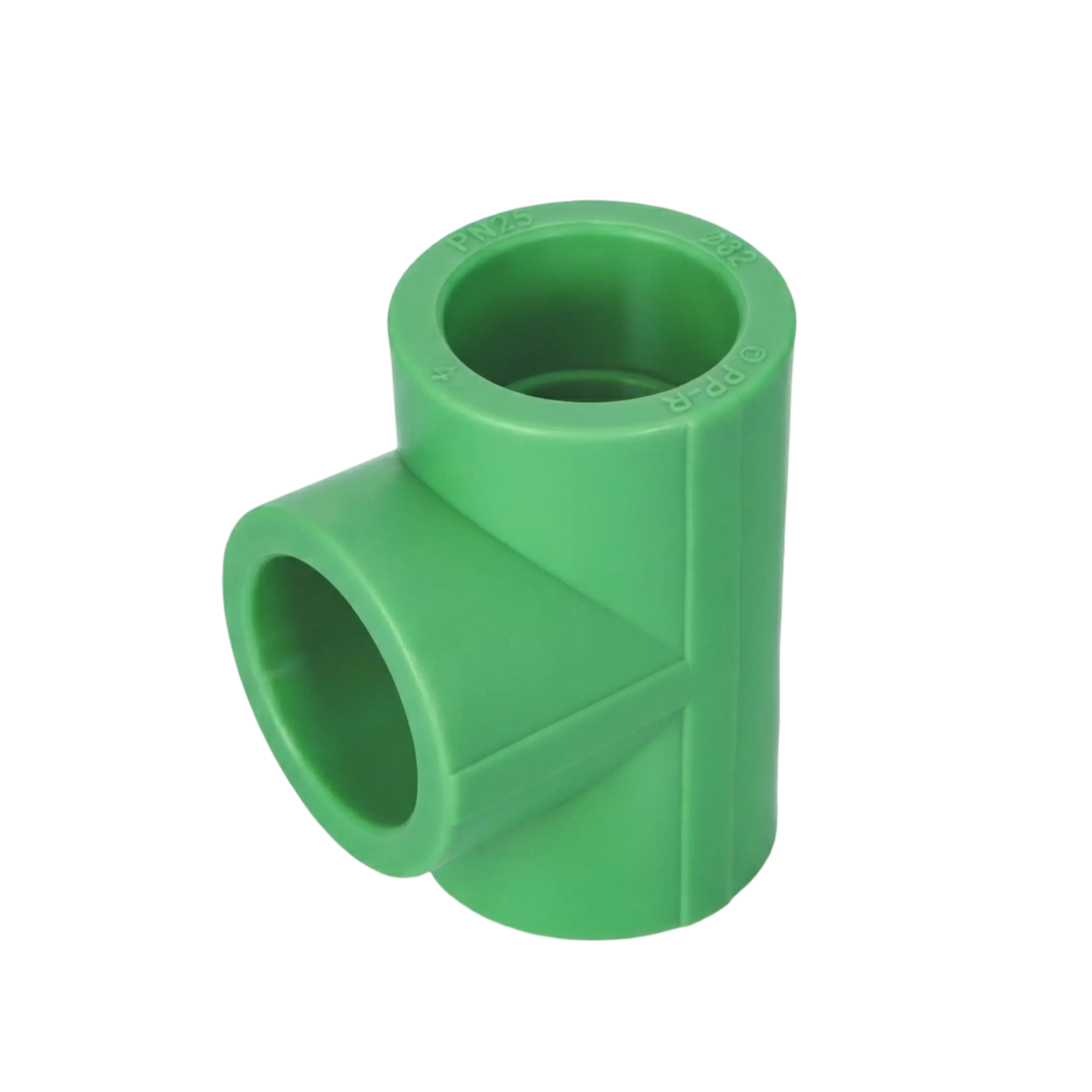

Plain Equal Tee
Plain Symmetrical 3-Way Splitting
Male Threaded Elbow
90° External Male Thread Adapter
Male Transition Elbow
Heavy Duty Fixture Mixer Wall Connector
Unbreakable Core Performance
100% Leak-Proof
Airtight completely homogeneous chemical bonds developed via thermal socket fusion, permanently eliminating water seepage or joint leakage cracks.
Anti-Fungal Barrier
Advanced smooth interior polymer structure prevents calcium scaling, microbial bacterial growth, and mold layers to guarantee premium clean pure fluid delivery.
50+ Years Lifespan
Utterly immune to rusting oxidation and aggressive mineral chemical erosion. Engineered to structurally survive decades under intensive high-pressure plumbing paths.
Laboratory Validated Specs
Certified PPR-100 material mechanical properties ensuring strict global standard compliance.
| Technical Property | Standard Value | Unit Measure |
|---|---|---|
| Material Density | 1.4 - 1.45 | gr./cc |
| Tensile Strength | 45 - 50 | MPa |
| Compressive Strength | 59 | MPa |
| Modulus of Elasticity | 3000 | MPa |
| Vicat Softening Point | 80 | °C |
| Service Lifespan | > 50 Years | Durability Threshold |
